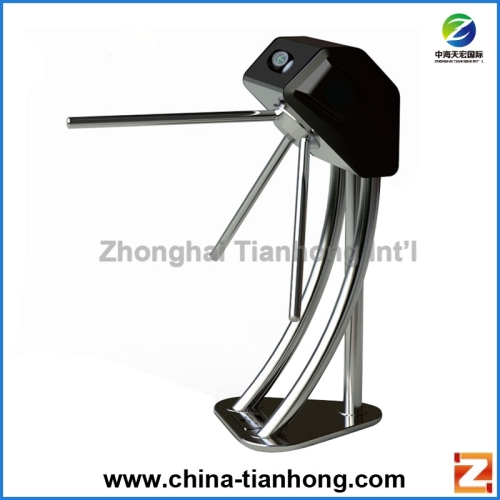

Access Control RFID Card Controlled Tripod Turnstile TH-TT608

Item No.: TH-TT608
The Access Control RFID Card Controlled Tripod Turnstile is a security gate that uses RFID cards for entry. It restricts access to authorized individuals, enhancing premises security efficiently.
INQUIRY
Description

The Access Control RFID Card Controlled Tripod Turnstile represents a sophisticated security solution designed to manage and control access to secured premises. This innovative system leverages Radio-Frequency Identification (RFID) card technology to ensure seamless and secure entry for authorized individuals.


At its core, the tripod turnstile consists of three rotating horizontal arms that form a barrier, preventing unauthorized access. The integration of RFID card technology enhances the efficiency of access control. Each authorized user is provided with an RFID card encoded with unique identification data. To gain entry, individuals simply present their RFID cards to a reader embedded in the turnstile.

The RFID reader swiftly captures the card's information, verifying its authenticity against a predefined database of authorized users. Upon successful authentication, the turnstile's arms rotate, allowing the individual to pass through. This automated process not only streamlines entry for authorized personnel but also contributes to the overall security of the premises.


One key advantage of this system is its ability to restrict access to only those with valid RFID cards, mitigating the risk of unauthorized entry. The tripod turnstile is particularly effective in areas where controlled access is crucial, such as office buildings, government facilities, and other secure environments.


Moreover, the Access Control RFID Card Controlled Tripod Turnstile often comes equipped with additional features such as anti-tailgating mechanisms, which further enhance security by preventing multiple individuals from entering on a single authentication. The system can also be integrated with other security systems, providing a comprehensive approach to access management.


In conclusion, this security solution combines physical barriers with advanced RFID technology to create a reliable and efficient access control system. By leveraging the Access Control RFID Card Controlled Tripod Turnstile, organizations can enhance their security measures, ensuring that only authorized individuals can access restricted areas.

Waist height tripods commonly called as half height tripod turnstiles are the basic class of turnstiles in the pedestrian access control family. With 100% metal housing regardless of whatever design, the box or wall mount turnstile or turnstile for bus or standard waist height turnstile, TIANHONG tripod turnstile series consists of complete range of waist height tripods or turnstiles. With SUS304 grade of steel housing and arms covered with soft sleeves for wonderful user experience, a robust appearance & efficient motor, the exclusive space for card readers or any access identification device, this series of turnstiles is always a pride of project. Designed as bi directional with LED direction indicators, the strong design mechanism and rust proof body, lets everyone to choose TIANHONG tripod turnstile series of waist height turnstiles. TIANHONG offers complete range of tripod turnstiles depends on application.

Features:

1)    DC electronic motor drive, photoelectric sensor

2)    Configuration: Mechanism, Housing, Control board and Power supply

3)    Operation Direction: Single/bi-direction

4)    Structure: Frame structure/stainless steel/cold sheet metal with paint

5)    Positive action to prevent two passengers at one time.

6)    3*120 degree stop

7)    Individual installation interface, easy to integrate with Magnetic card, Barcode, ID card, IC card etc.

8)    Access freely when the electricity is off, but arms won't drop down

9)    Stand alone or connect to the internet.

10) Maintenance Port: 2

11) Service Life: Ten years (non-consumable)

12) Anti-reverse: Have anti-reverse function in order to ensure one card for one person

13) Temperature:-10℃~60

14) Power:AC220V±10% 50Hz±4%

15) Humidity:5~95

16) Output:DC24VDC5V

17) Speed:25 people/minute

18) Power Consumption: Static state: single mechanism 20W; dynamic state: single mechanism 60W

19) Noise:50dB

20) Lane Width: 550~570mm

21) Interface Parameter: One RS232 interface, two card reader signals (Passive), one fire alarm interface.

22) Dimension: L*W*H: 767L x 415W x 1050Hmm

23) Protection property: IP42 for indoor

24) NET weight: 100KG

25)  Package: Wooden case
