Description

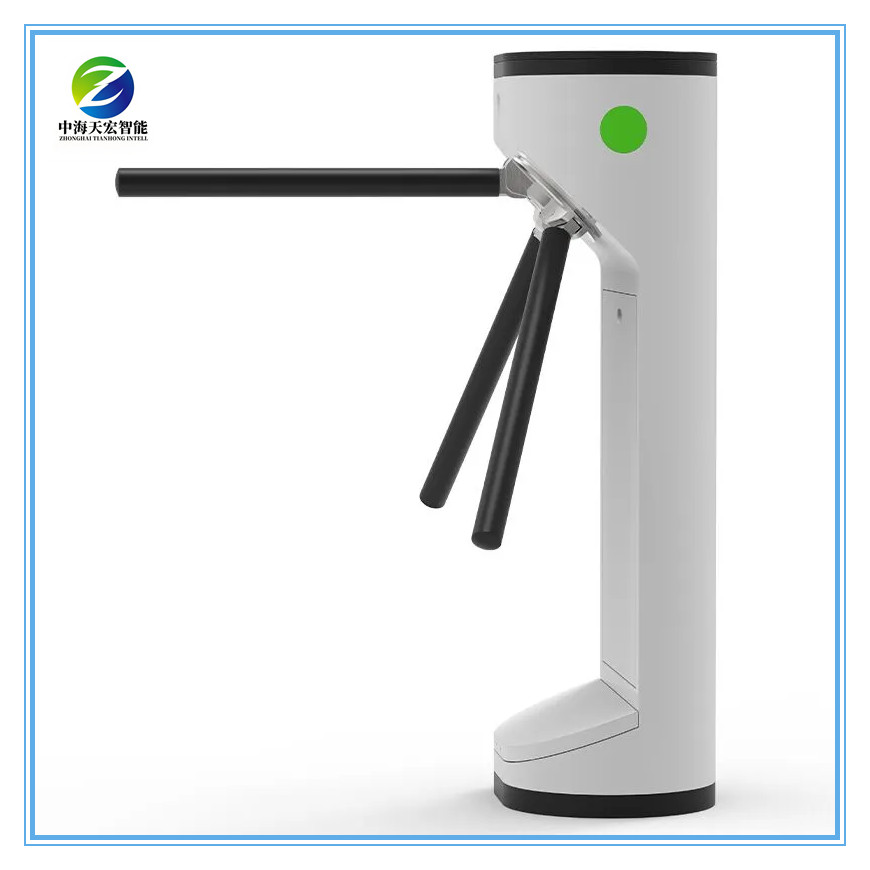

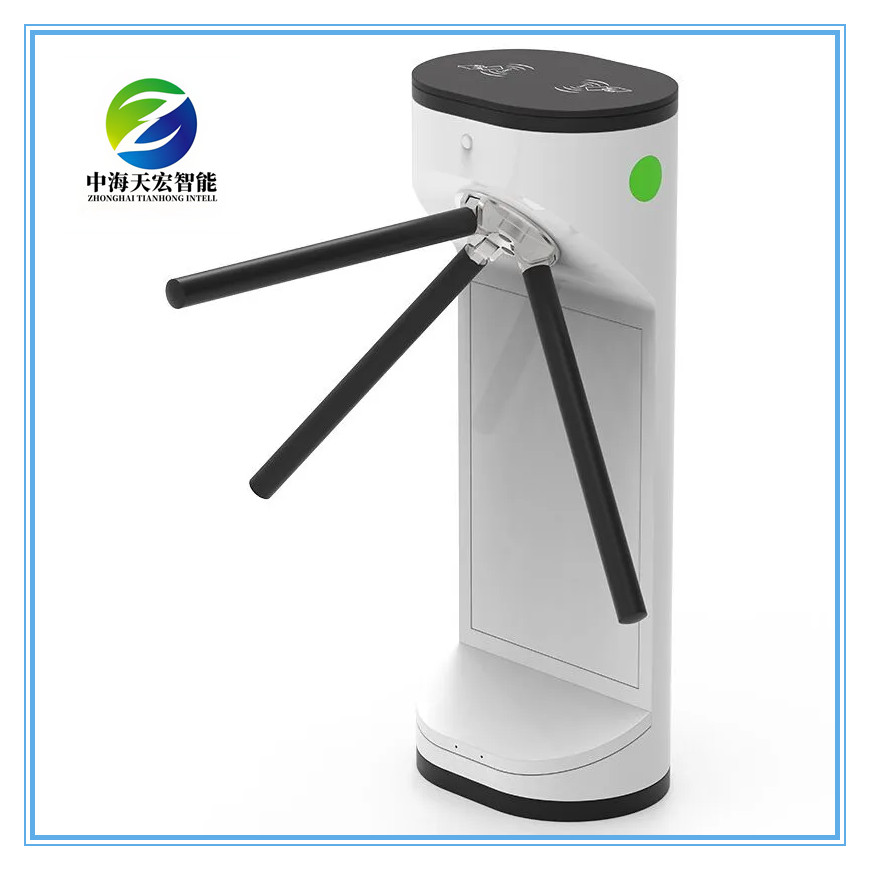

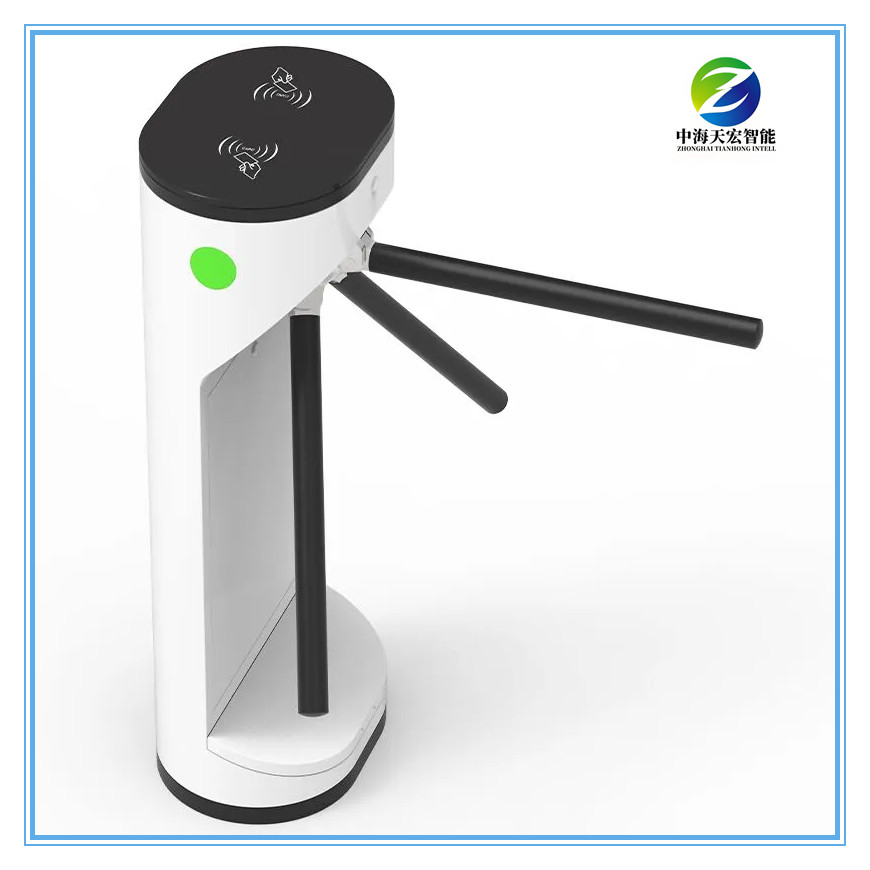

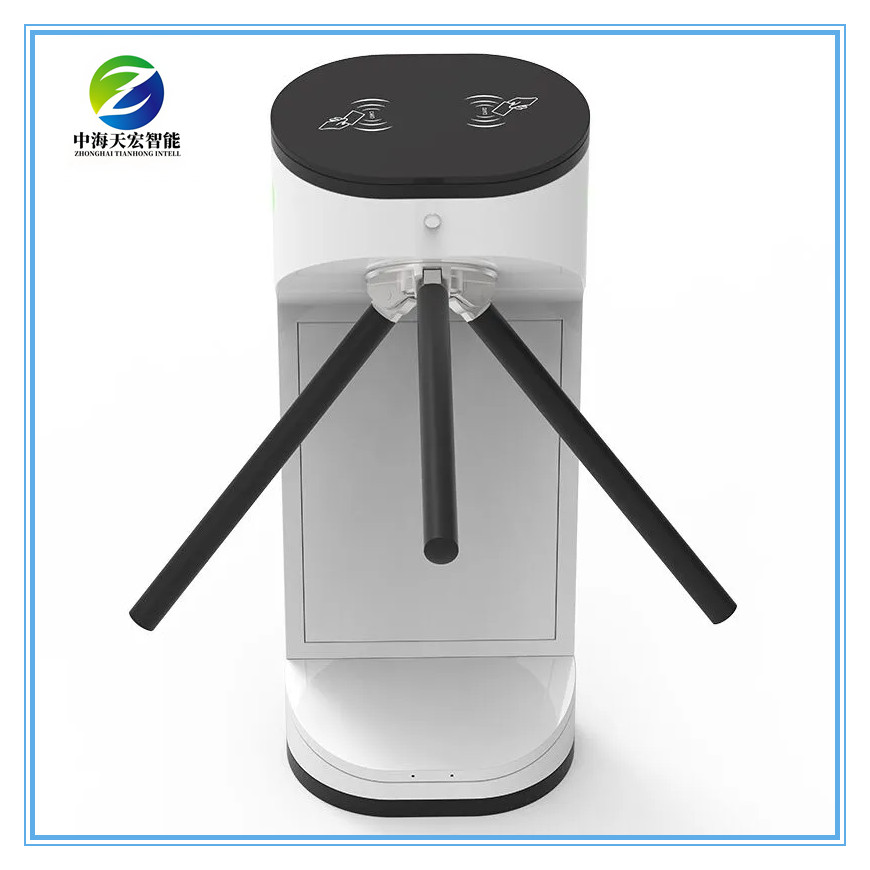

This China Factory Vertical 3-Rod Tripod Turnstile Security Gate TT428 is a durable automatic access control barrier for commercial spaces.
Crafted with a sleek vertical white cabinet and solid stainless steel three rods, it features an effective anti-tailgating structure and a built-in green LED indicator to display real-time passage status clearly. Powered by a 24V solenoid and compatible with 110V/220V universal voltage, this tripod turnstile delivers a smooth throughput of 35 people per minute with a tested 3 million fault-free mechanical cycles for long-lasting daily operation. Its overall dimension and 550mm lane width support full customization, and it outputs dry contact relay signals to connect with various RFID card readers.

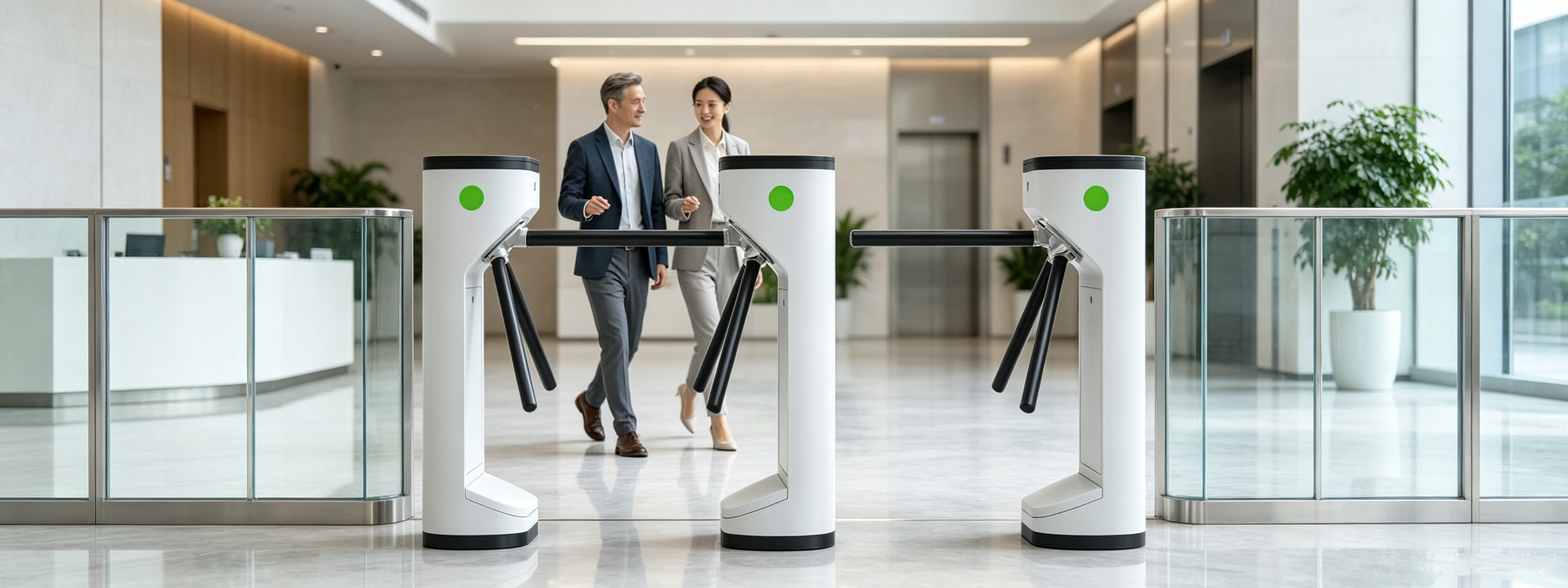

Constructed from 304 stainless steel and high-strength ABS plastic, the gate allows side-by-side multi-unit installation with stainless steel glass partitions. Holding CE and ISO9001 certifications, this factory-direct security turnstile perfectly fits office lobbies, high-end apartments and gyms, offering cost-effective, reliable pedestrian security solutions to global bulk buyers.
Main Feautures
Crafted with a sleek vertical white cabinet and solid stainless steel three rods, it features an effective anti-tailgating structure and a built-in green LED indicator to display real-time passage status clearly. Powered by a 24V solenoid and compatible with 110V/220V universal voltage, this tripod turnstile delivers a smooth throughput of 35 people per minute with a tested 3 million fault-free mechanical cycles for long-lasting daily operation. Its overall dimension and 550mm lane width support full customization, and it outputs dry contact relay signals to connect with various RFID card readers.
Constructed from 304 stainless steel and high-strength ABS plastic, the gate allows side-by-side multi-unit installation with stainless steel glass partitions. Holding CE and ISO9001 certifications, this factory-direct security turnstile perfectly fits office lobbies, high-end apartments and gyms, offering cost-effective, reliable pedestrian security solutions to global bulk buyers.
Main Feautures
| Parameter Name | Parameter Value |
|---|---|
| Product Size | 500280980 mm (can be customized) |
| Lane Width | 550 mm (can be customized) |
| Passing Speed | 35 person/min |
| Power Supply | 110V/220V |
| Product Weight | 55 kg |
| Gate Open Signal | Dry Contact/ Relay |
| Solenoid Voltage | 24V |
| Mechanism Reliability | 3 million, no-fault |
| Operation Mode | Semi-automatic |
| Body Material | 304 Stainless Steel + ABS Environmental Protection Plastic |
| Protection Grade | IP54 (Dustproof & Waterproof, suitable for indoor/semi-outdoor use) |
| Working Temperature | -10℃ ~ +60℃ |
| Relative Humidity | ≤90% (Non-condensing) |
| Supported Card Type | IC Card/ID Card/M1 Card (compatible with face recognition/fingerprint recognition module) |
| Communication Interface | TCP/IP Network Interface + RS485 Interface |
| Certification Standard | CE |
