Best RFID Access COntrol Tripod Turnstile TH-TT418B

Item No.: TH-TT418B
Applied to pedestrian passageway and automatic ticket sale and check management such as for government, enterprises and institutions, Intelligent Building, residential areas, scenic area venues, universities, kindergartens, station, leisure and entertainm
INQUIRY
Description

Product Description

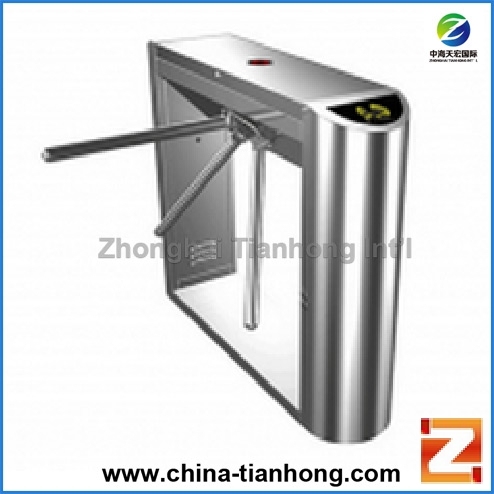

Tripod turnstile is the most basic type of pedestrian turnstile gate, which is composed of the chassis, mechanism, and three blocking rods which stop or release by rotating 120° each time. Its components include chassis, mechanism, drive control board, motor, limit, direction indicator board, access control part, optional counter, etc. The metal rod (rod length standard 50cm) forms a spatial triangle as the blocking body (brake rod). It is made of 304 or 316 stainless steel, which is durable and not easy to deform. The blocking and releasing are achieved by rotation.
Tripod security gate can be combined with smart card, fingerprint, bar code, and other identification system equipment to form an intelligent access control system; It is combined with a computer, access control, attendance, charge management, ticket system, and other software to form an intelligent access control management system, which can realize the functions of access control, attendance, consumption, ticket sales, current restriction and so on.



Technical Parameters
1. Protection: When the force exceeds the set value (such as 40 kg), arm can rotate in order to protect the mechanism from loss and then automatically reset.
2. Configuration: Mechanism, Housing, Control Board and Power supply
3. Operation Direction: Single/bi-direction
4. Structure: Frame structure/Stainless steel/Cold sheet metal with paint
5. Drive Mode: Direct current motor
6. Anti-reverse: Anti-reverse function in order to ensure one card for one person
7. Temperature:-10
℃~60℃
8. Voltage:AC220V±10% 50Hz±4%
9. Humidity:5%~95%
10. Output:DC24V、DC12V、DC5V
11. Speed:≤25 people/minute
12. Power Consumption: Static state: single mechanism 20W; dynamic state: single mechanism 60W.
13. Noise:
<50DB
14. Working Environment: Indoor, Outdoor (with rain frame)
15. Lane Width: 550~600mm
