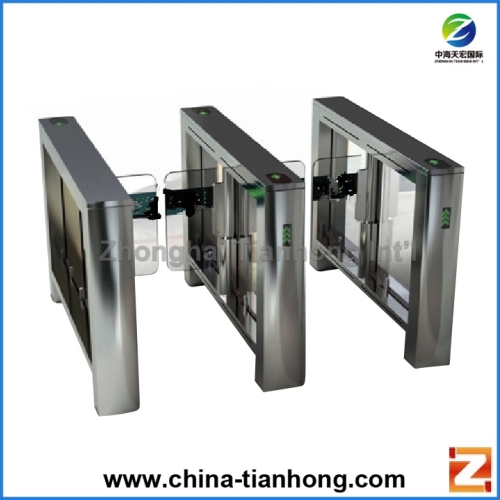

Lobby Turnstile Speed Gate TH-SG304

Item No.: Lobby Turnstile Speed Gate TH-SG304
Be applied to lobby pedestrian passageway and automatic fare collection management such as government, enterprises and office buildings.
INQUIRY
Description

Lobby turnstiles are a kind of pedestrian turnstile gate which used for lobbies of various buildings to control and manage the access of personnel. The use of the lobby turnstile has greatly improved the verification efficiency and traffic efficiency of the building hall. Generally, speed gates and swing turnstiles are the most common lobby turnstiles, and some customers choose flap barrier Gates according to their actual needs as lobby turnstiles.

We can provide OEM and ODM services. We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on. If you need to integrate these devices on the lobby security turnstile gate or have any questions, please inquiry us.



Technical Parameters
1. Configuration: Mechanism, Housing, Control board, Power supply
2. Power Consumption: Static state: single core 60W; dynamic state: single core 160W.
3. Power Input:AC220V
±10%,50HZ
4. Output:DC5V、DC12V、AC24V
5. Drive Mode: DC electric motor

6. Interface: one Rs 232 interface, two card reader signals (passive), one fire alarm interface.
7. Overall Dimension:1500L x 185W x 1020H (mm)
8. Following Speed:35 people/minute in normal mode, 50 people/minute in fast mode

9. Service Life: Five millions continuous rotation
10.Operation Direction: Single/bi-directional

11.Working Environment: Indoor
12.Lane Width:500mm-550mm
13.Opening Angle:90
±5°
14.Noise:≤50dB
15.Opening and Closing time: 1 second

16.Net Weight: Single core 70 KGS/set; double cores 100 KGS/set
