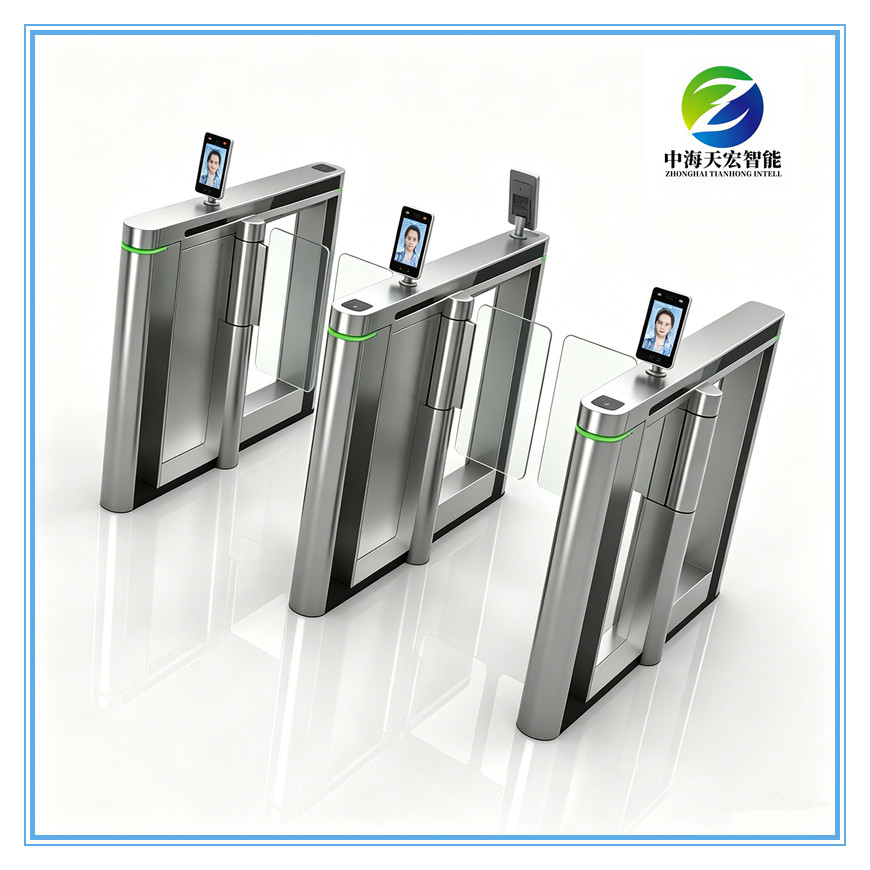

Zhonghai Tianhong Speed Gate SG408 is a premium speed gate turnstile engineered for enterprise-grade access control. Constructed from polished SUS304 stainless steel with tempered glass barriers, it delivers both sleek aesthetics and robust durability for modern lobbies.
Equipped with advanced multi-zone optical sensors, it provides full-body detection, reliably identifying tailgating, reverse entry, and forced intrusion attempts in real time. The precision brushless servo motor enables ultra-fast, quiet barrier movement, supporting high throughput of up to 45 people per minute.
It features anti-pinch safety protection, adjustable auto-lock timers, and LED status indicators for intuitive operation. Seamlessly integrating with RFID, biometric, and QR code readers, this versatile turnstile is ideal for corporate offices, tech parks, and commercial buildings, ensuring secure, efficient, and dignified pedestrian access.
Technical Parameters
| No. | Item | Specification |
|---|---|---|
| 1 | Product Model | TH-SG408 |
| 2 | Product Type | High-end Speed Gate Turnstile |
| 3 | Material | SUS304 Stainless Steel Housing + Tempered Glass Barrier |
| 4 | Channel Width | 600–900mm (customizable) |
| 5 | Throughput Rate | 40–45 persons/minute |
| 6 | Detection Technology | Multi-zone Infrared Full-body Detection |
| 7 | Drive System | Brushless Servo Motor, Low Noise Operation |
| 8 | Safety Features | Anti-tailgating, Anti-reverse, Anti-pinch, Anti-forced entry |
| 9 | Power Supply | AC 100–240V, 50/60Hz |
| 10 | Operating Environment | -20°C ~ +60°C, Humidity ≤90%RH (non-condensing) |
| 11 | Communication Interface | TCP/IP, RS485, Wiegand Protocol Supported |
| 12 | Access Compatibility | RFID Card, QR Code, Face/Fingerprint Reader |
| 13 | Operation Mode | Normally Open / Normally Closed / Controlled Access |
| 14 | Emergency Function | Fire Alarm Linkage, Power-off Auto-Open |
| 15 | Protection Grade | IP54 (indoor), IP65 outdoor version optional |
| 16 | Dimension (Single Lane) | 1400L × 120W × 1000H mm (customizable) |
