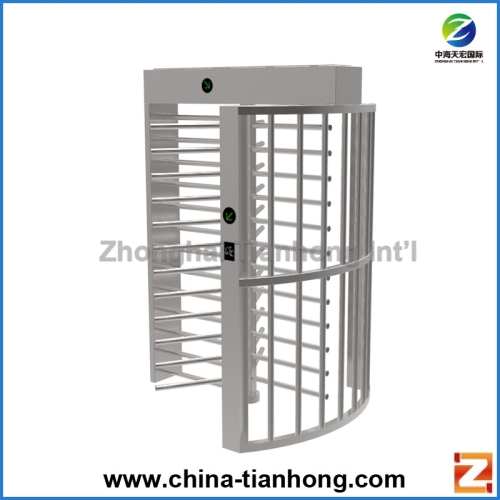

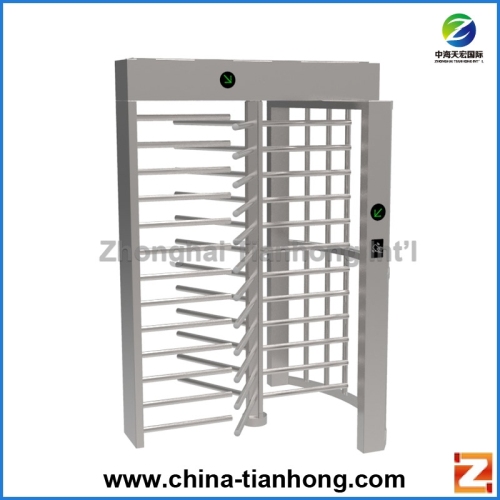

Best Pedestrian Full Height Turnstile

Item No.: TH-FHT208-1
Full height turnstiles are made of SUS304 stainless steel. It adopts the most advanced drive control technology, which can change the design in a large range to meet the various requirements of different styles of modern buildings for intelligent pedestri

Full height turnstile is an upgraded product of traditional pedestrian turnstile gates with the best security performance, which is much higher and wider than an ordinary turnstile gate and has obvious security advantages. Full height turnstile can form a closed passage space, personnel pass orderly by swiping cards and other methods. Full height turnstiles can be unattended and have high application value in some places with strict security measures. It is composed of chassis and 3 or 4 rows of rotating rods. Full height turnstiles are developed on the basis of a tripod turnstile. It can be dissuaded or released by rotating 120° or 90° each time.

Full height pedestrian turnstiles are designed to control pedestrians entering and exiting, suitable for indoor and outdoor use.

This full height turnstile is a single full height turnstile, what is a single full height turnstile? different from a double full height turnstile,  a single full height turnstile is composed of one control mechanism and one stainless steel blocking rod, which has only one channel.

We provide both OEM & ODM services.
For pricing and designing or other more informtion, please inquiry us.

Technical Parameters

  1. Stainless Steel SUS304 cut by laser;

  2. The least welding portion polished properly;

  3. Original finish kept;

  4. Net weight: 260kg;

  5. 6. C.B.M weight: 4.2 C.B.M  ;

  6. Size of wooden case:2200*1670*1120mm

  7. Size:1630x1500x2310mm;

  8. Pass rate: 30 person /min;

  9. Pass width:≤650mm;

  10. Input : 220V,50HZ;

  11. Motor voltage: 24v

  12. Environment: -25~+70;

  13. Power consumption:32w;

  14. Input: 12v level signal or Pulse Wide>100ms ;
