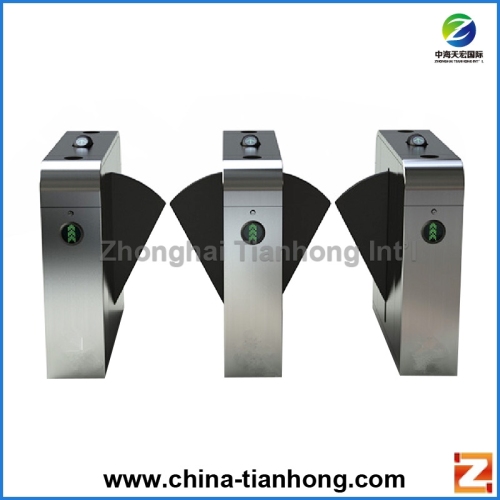

Biometric Flap Barrier Turnstile provides an efficient and reliable way to ensure that only authorized people are allowed to access each area of a building. This is a high-speed flap barrier biometric turnstile that is capable of handling high volume access and abusive conditions.
The birometric flap barrier turnstile comes with a standard electric interface that can easily integrate the common 3rd party access control system, such as bar-code scanner, Token coin collector, time & attendance system, card collector, biometric systems (fingerprint & face recognition), ESD system and fare collection system, etc. It’s one of the most common security turnstiles.
Parameters
|
Contains |
Mechanism, Housing, Driver board, Power Supply |
|
Housing Material |
Stainless steel or Cold-rolled steel plate |
|
Drive Mode |
Motor drive, 6 sets Photoelectric sensor |
|
Communication Interface |
One RS232 interface, two card reader signals(passive),one fire alarm interface |
|
Status Indication |
Allow passing through/ Forbidden |
|
Power |
1. Paused: ﹤50watt 2. Working state: ﹤150watt |
|
Working Environment |
Indoor, matching with rain frame for outdoor use |
|
Humidity |
5%-90% |
|
Noise |
≤65dB |
|
Lane Width |
600mm |
|
Net Weight |
80KGS |
|
Follwing Speed |
35people/minute in Normal close mode; 60people/minute in Normal open mode |
|
Service Life |
Three millions continuous opening and closing of barrier panel |
|
Access Modes |
1. Locked 2.Remote control by computer 3. Authorized |
|
Voltage |
Input AC220V (adjustable) |
|
Maintenance Port |
2units |
|
Dimension |
1200L × 1040H × 280W(mm) |
|
Working Environment |
0℃-60℃ |
|
Working State |
Single/ bi-directional |
