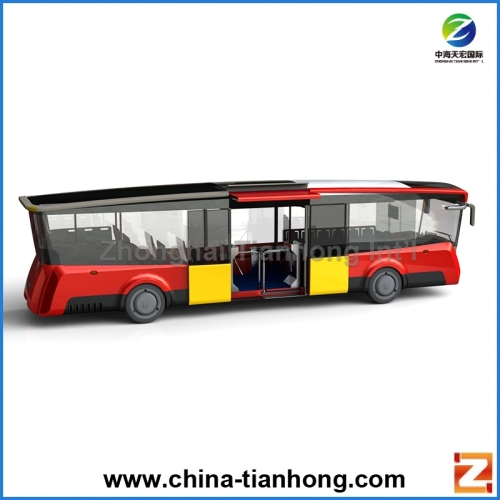

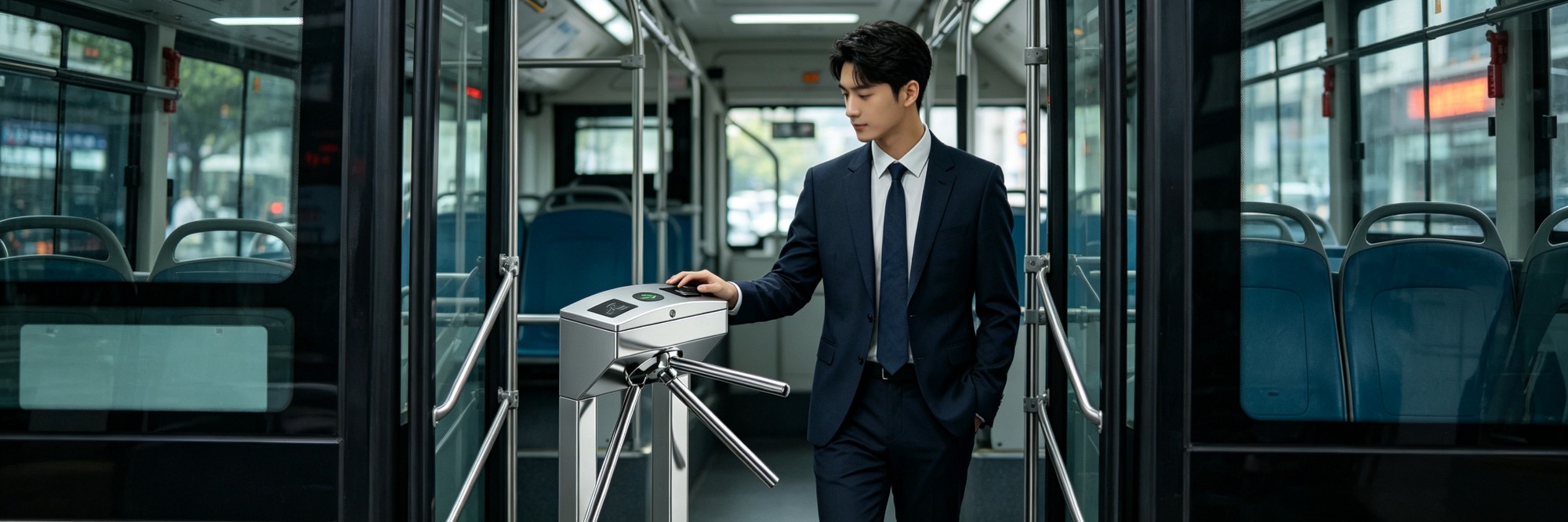

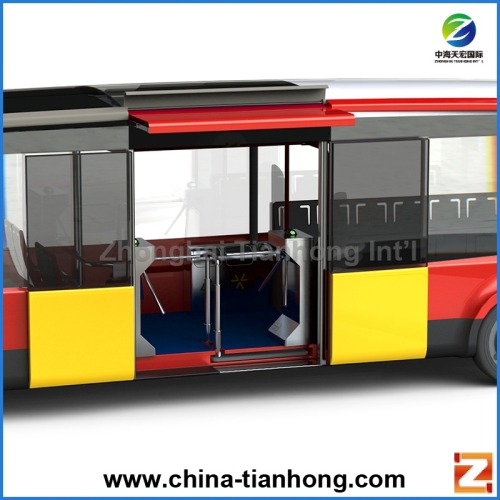

On-Board Bus Tripod Turnstile is tailor-made for interior installation on city buses, new-energy buses and BRT vehicles to standardize passenger boarding and onboard fare verification.

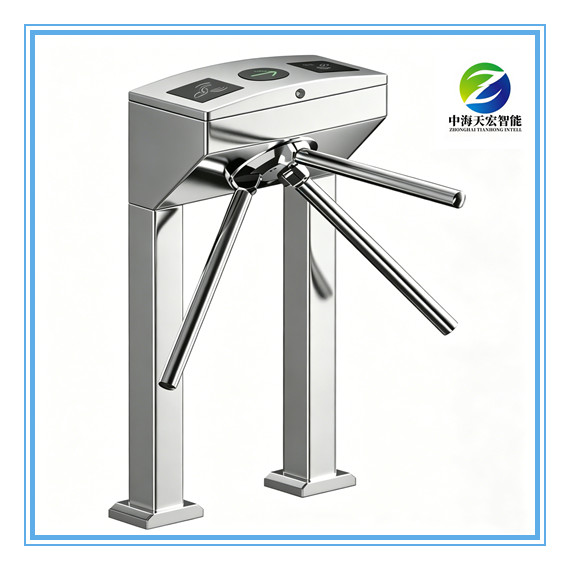

Built with reinforced SUS304 stainless steel housing, the electromechanical core features fixed 90° single-pass rotation and unidirectional passage as standard, fully meeting bus access management demands. Rated IP66 waterproof and dustproof, it exceeds the client-requested IP54 grade to cope with complicated outdoor temperature fluctuation from -30℃ to +70℃. Anti-loose internal fittings strengthen anti-vibration performance, adapting perfectly to continuous bumping and vibration during vehicle operation.
Equipped with LED access indicator, anti-tailgating lock and emergency power-off free-pass function, the turnstile guarantees safe evacuation once power fails. With over 10 million-cycle MTBF and high-frequency passing capacity up to 35 people per minute, it delivers outstanding durability for intensive daily bus operation, trusted by bus operators across Europe, Southeast Asia and South America.
Mian Features
Anti-vibration reinforced bus-specific structure
Fixed 90° single-pass unidirectional rotation
IP66 high dustproof & waterproof protection
SUS304 stainless steel cabinet body
Low-noise brushless DC driving motor
Built-in anti-tailgating locking mechanism
Adjustable automatic arm reset function
Power-off free passage for emergency escape
Wide temp range: -30℃ ~ +70℃ working
Dry-contact signal access control interface
≥10 million cycles long service lifespan
Red&Green LED passage status indicator
Products Parameter:
Size：420 *280 *980 mm
Arm length：600 mm (Normal size)
Thickness of the case：1.5 mm on top, 1.2 mm
Power supply：AC 198V ~ 248V 50Hz±4 %, output: AC24V, DC 12V
Flap opening/closing time：0.7 s
Operating temperature：-25 ~ +70℃
Operating humidity：≤90%
Weight：35 kg
Life span：10 years (Non-consumables)
Traffic speed：35-35 person/minute
Body housing：304# stainless steel
