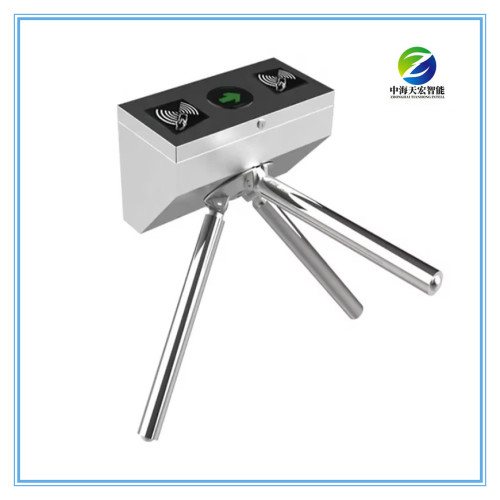

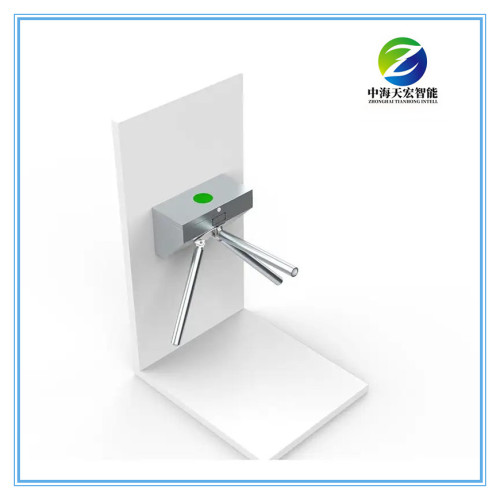

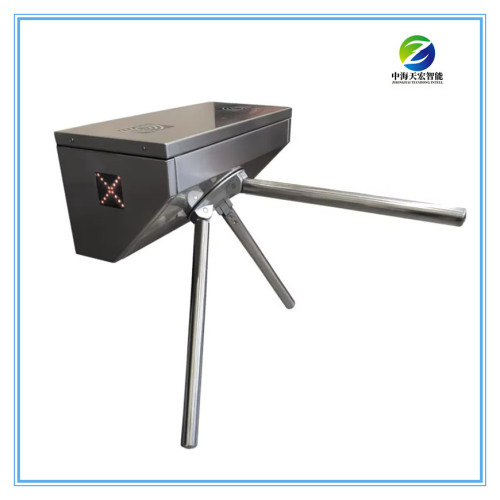

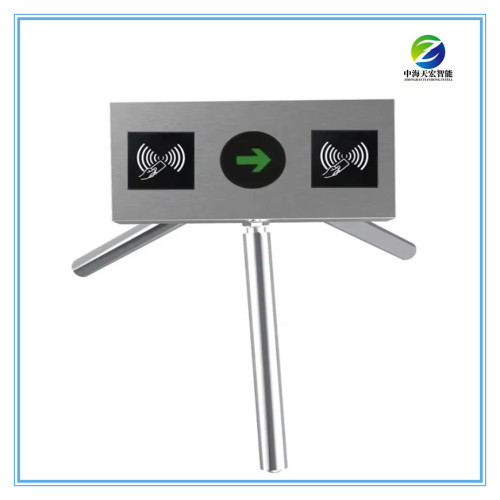

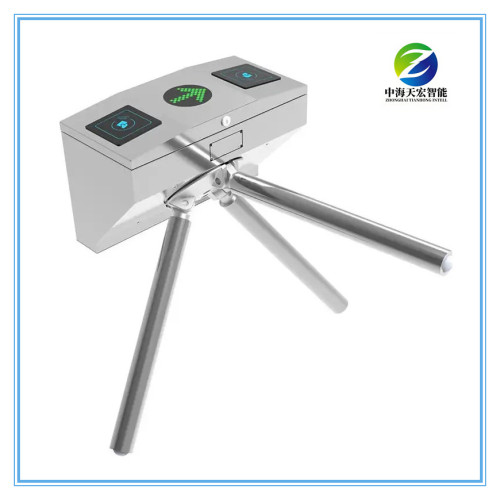

Bus Tripod Turnstile

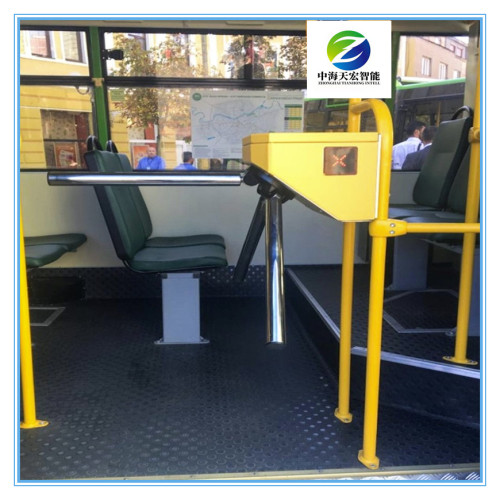

Zhonghai Tianhong's Bus Tripod Turnstile BTT1 is a versatile and reliable access control solution designed specifically for public transportation systems, particularly buses and similar high-traffic environments. Engineered with robust materials, the turnstile offers durability and longevity, making it ideal for rigorous, daily use. Its compact design ensures that it can be easily integrated into tight spaces, such as bus entrances, without obstructing passenger flow.
The turnstile features a three-arm mechanism that rotates in response to ticket validation or other access control mechanisms, allowing passengers to pass through one at a time. This ensures a smooth and controlled flow of people, preventing overcrowding or unauthorized entry.
The system is compatible with various ticketing methods, including RFID cards, QR codes, and contactless payments, making it adaptable to modern ticketing technologies.
Additionally, the turnstile offers a user-friendly experience with fast response times, minimizing delays during boarding. It is equipped with safety features, including emergency unlock functions, ensuring that passengers can evacuate swiftly during emergencies.
Zhonghai Tianhong's Bus Tripod Turnstile BTT1 is an essential solution for enhancing security, efficiency, and passenger experience in public transport systems.
Main Data:
| Power Supply | AC110V-220V DC24V |
| Temperature | -15 to 60 degrees |
| Humidity | <95%, without concretion |
| Passage Width | <=600mm |
| Passing Speed | 40 persons/min |
| Power Consumption | 100W |
| Input Interface | +12V electrical signal or impulse signal |
| width | more than 100ms |
| drive current | >10mA |
| Communication Interface | RS485 (Distance:<=1200m) |
| Material | 304 stainless steel |
| Dimension | 480*230*280 mm |
Housing Size Optiona A
Housing Size Optional B
Bus Tripod Turnstile Model Choices
