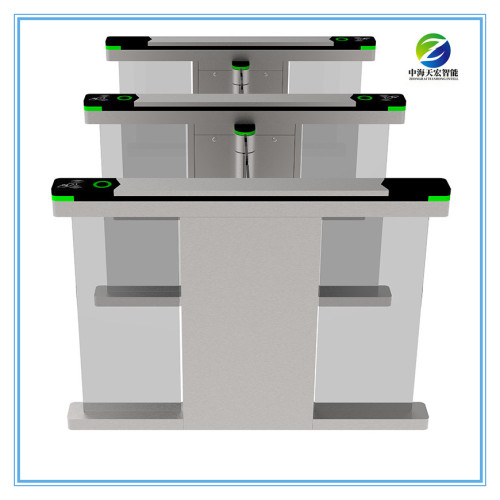

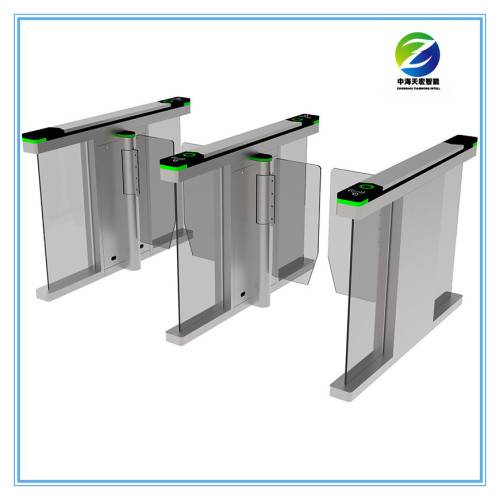

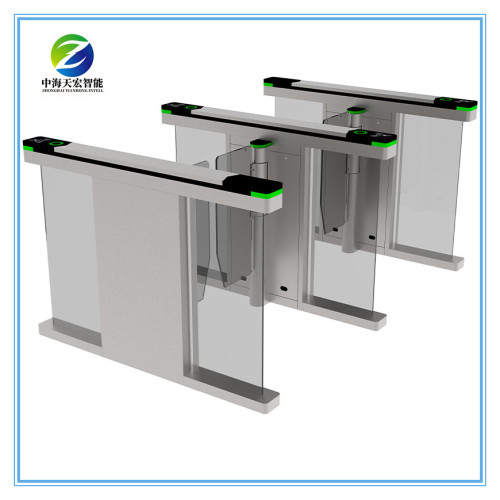

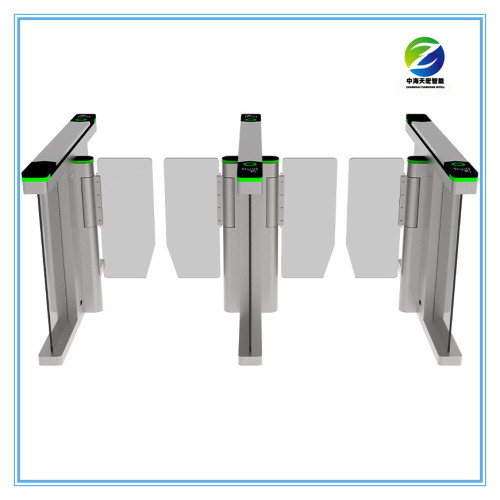

The Tianhong Brushless Servo Motor Automatic Access Control Fastlane Speed Gate SG328K is a premium security solution designed for high-traffic environments requiring efficient, secure access control. Its transparent acrylic barriers provide a modern, sleek look, seamlessly integrating into contemporary architectural spaces such as corporate offices, airports, and government buildings.
Equipped with brushless servo motor technology, the SG328K delivers reliable, energy-efficient, and quiet operation. This advanced motor system ensures high durability and minimal maintenance, making it ideal for continuous use in demanding environments. The fastlane technology allows smooth and swift entry, efficiently managing large volumes of pedestrian traffic while preventing unauthorized access.
The SG328K supports multiple authentication methods, including RFID card readers, biometric scanners, and QR codes, making it adaptable to various security systems. Its advanced sensors effectively detect and prevent tailgating, enhancing security and operational efficiency.
With safety features like anti-pinch, anti-collision, and emergency escape functions, the SG328K prioritizes both user safety and security. This speed gate is an excellent choice for facilities seeking a balance of style, performance, and dependable access control.
Technical Parameters
1. Size: 1400*120*980 mm (can be customized)
2. Lane Width: 600 mm (Standard) 900 mm( Handicapped)
3. Arm Material: Acrylic
4. Passing speed: 40 person/min
5. Power supply: 110V/220V 50/60Hz
6. Brushless motor
7. Gate Open Signal: Dry Contact/ Relay
8. Driving Motor: 24V
9. Weight: 70 kg/pcs
10. In the Anti-hit mechanism, automatically reset when encountering force impact
11. Casing Material: 304 stainless steel
12. Reliability of the mechanism: 3 million, no-fault
13. LED lights on arms are available
14. Standard side panel is glass
15. LED on the sideboard is optional,
16. Working Direction: Bidirectional/Single directional
17. Emergency situation: open automatically when the electricity is cut off. Backup battery self-provided
18. Humidity: ≤90％
19. Working temperature: -20℃～60℃
20. Communication distance: ≤1200 m
21. Communication interface: RS485
22. Feature: IC/ID reader, Barcode Reader, Face recognition, Fingerprint, other access control equipment, UPS, etc
23. Time needed for opening: 0.2 s
24. Working Environment: Indoors
25. Application range: Community, Factory, Construction site, School, Place of the resort, etc.
