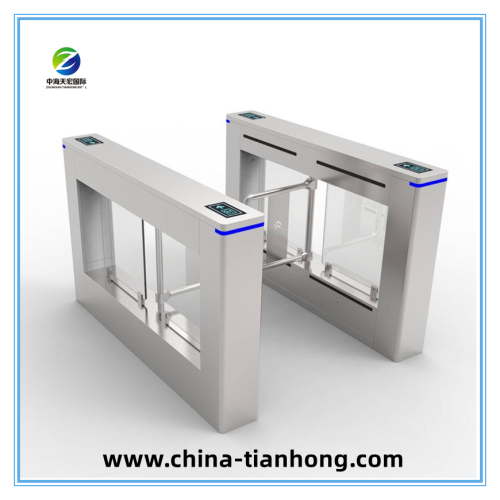

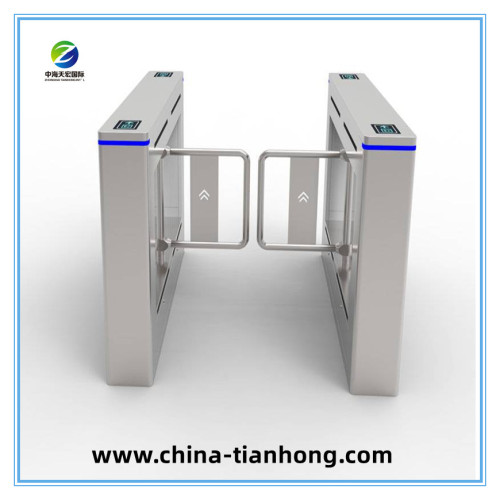

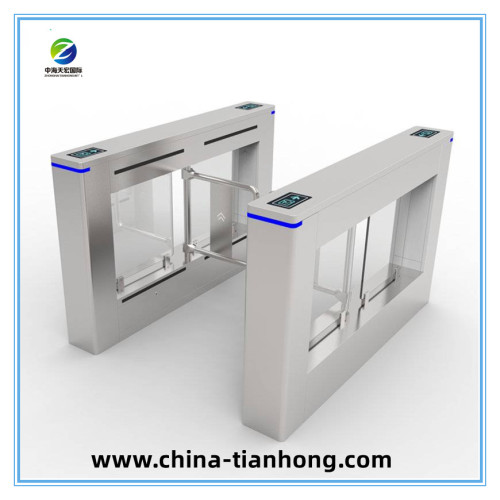

Anti Collision QR Rfid Swing Gate Turnstile TH-SGB318
Features & Benefits
Safety first: In the fire or power-off, the door can be free to promote and ensure unimpeded
Various Interfaces: I/O, RS232/485,CAN interfaces, which it is convenient to control signal input, and provides convenient centralized fire control interface.
Two working modes: NC and NO, which is easy to deal with peak and normal use. Multiple control modes: There are unidirectional, bidirectional, free passage and authorization passage to meet fully the users ‘needs, which consist of nine control modes;
Precise positioning: precise positioning by photoelectric sensors, the work cycle of door is regular and precise positioning to ensure correct position after long work;
Indicator control: the indicator is able to show three status of front and back indicator (allow through, no through, system maintenance).Also which show the passage direction and passage status (A to pass,B to pass,no through), According to reasonable indicator control, which is convenient for users to management.
Machine core control:the two sides machine core work with coordination and synchroniztion, and the control system provide convenient management functions. the passage controller can control the machine core of all functions and settings of all parameters, which is reasonable for consisting of the various components of the machine core operation flow, and which is more intelligent and safety to design a access control function
Technical Parameters
1. Size: 1400*185*1020 mm (can be customized)
2. Lane Width: 600 mm (Standard) 900 mm( Handicapped)
3. Arm material: 304 stainless steel
4. Passing speed: 40 person/min
5. Power supply: 110 V/220 V 50/60 Hz
6. Brushless motor : 40 W
7. Gate Open Signal: Dry Contact/ Relay
8. Office turnstile Driving Motor: 24 V
9. Casing Material: 304 stainless steel
10. Max Lane width: 1600 mm
11. Communication interface: RS485
Tianhong offers the best anti collision swing gate turnstile with QR & RFID card reader price.
