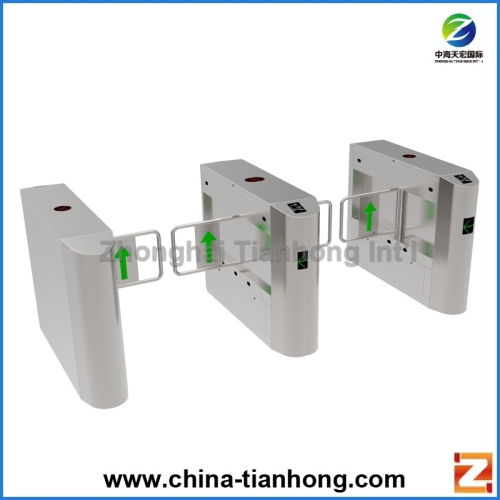

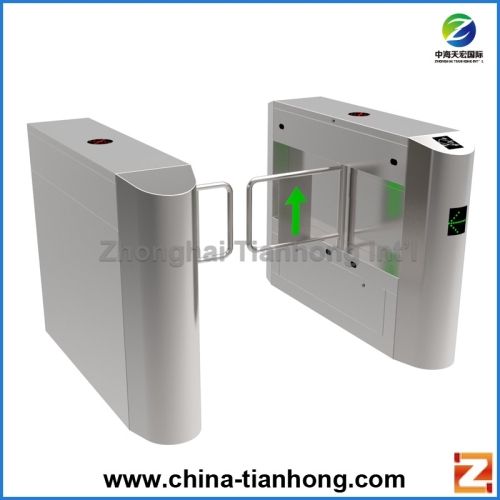

Security Turnstiles Swing Barrier Gate TH-SGB306

Item No.: TH-SGB306
Security turnstiles swing turnstile gate is an  automatic barrier turnstile that comes with a stainless steel arm that can be used in abusive conditions. The lane width can reach 1100mm, which can be used for bicycle access control. T
INQUIRY
Description

Security turnstiles swing gate turnstile is an automatic barrier turnstile that comes with a stainless steel arm that can be used in abusive conditions. The lane width can reach 1100mm, which can be used for bicycle access control. The mechanism is an anti-hit one. If someone hits the arm, it can move back to the original location manually. Tianhong offers the best turnstile gate with card reader price.

Main Advanatges:



  • Turnstile gate with card reader price is a highspeed gate, which is usually applied in the location with high traffic flow in bi-direction running.
  • The chassis is made from hairline texture 304 stainless steel which creates a seamless and elegant access point to match most indoor environments.
  • This swing turnstile gate with card reader price comes with international standard RS485 and relays Which makes it widely compatible with all existing software in the industry and almost all the access control like RFID system, Bar codes system, Face recognition system and fingerprint system, etc.
  • In case of emergency, cut off the power, the office turnstile will open automatically to allow free passage which is complying with fire safety requirements. But it has to comes with a battery. As for export, the battery is sensitive, we can use the capacitor to replace
  • Office turnstile is suitable for luxury and high-end entrance solutions.
  • The whole system runs smoothly, with low noise, high speed.
  • Best turnstile gate with card reader price.
  • Alarm function, if there is an illegal intrusion and backward intrusion, the gate will alarm and the door will lock.
  • There is a total of 5pairs of infrared sensors The middle sensors are to prevent pinch pedestrians.
  • Anti-tailing function, one person can pass at one time. If someone tails after the front people, the gate will alarm
  • LED indicator. Red cross and green arrow. There are also LED indicators on the front post.  The LED light can be added to the arms.
  • Bi-directional access reduces the need for more gates. It is accommodated for wheel Chair, shopping stroller increases the passing efficiency.
  • Automatic reset function. If the people did pass within the preset time (default time is 5 seconds), the system will cancel the authority of the user and close automatically
  • Anti-bump, Anti clamp, The gates come with brushless During operation if someone hits the arm, the gate will reset automatically. This function effectively prevents pedestrians especially children from bumping, clipping, striking, etc.


Technical Parameters:


1:Size:1410x340x1005mm;

2.Unlock time: 0.2s ;

3.Pass rate: 35 person/min;

4.Pass width:≤550mm;

5.Input :  100V~240V;

6.Motor voltage: 24v;

7.Environment: -25~+70;

8.Power consumption:150w;
