Description

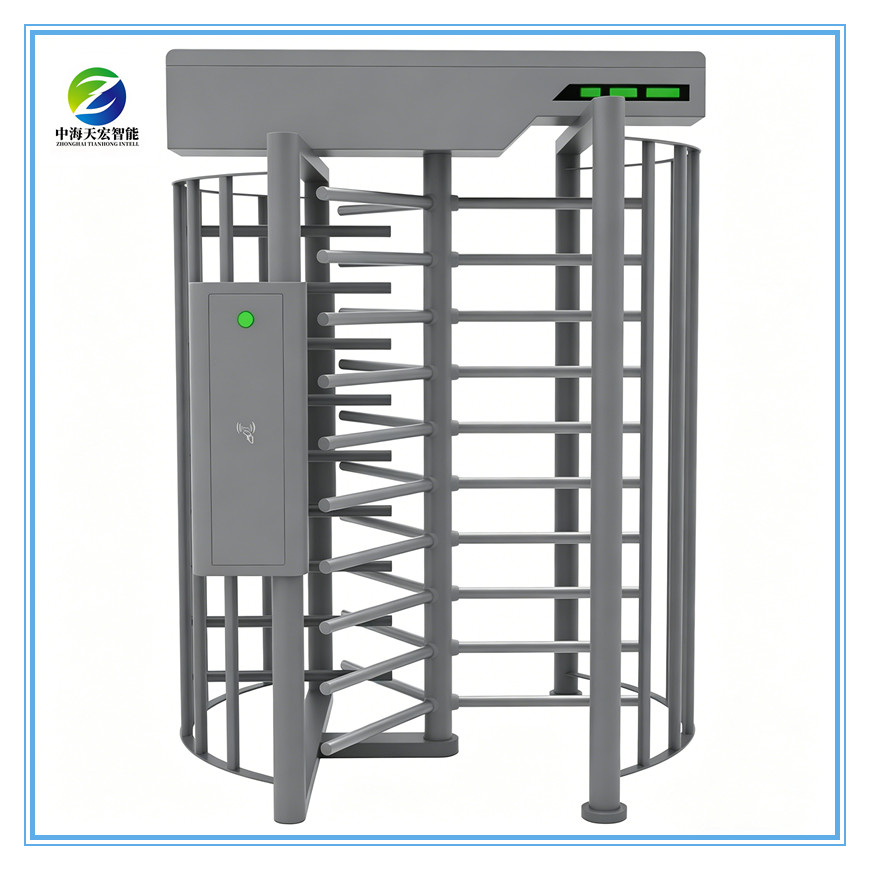

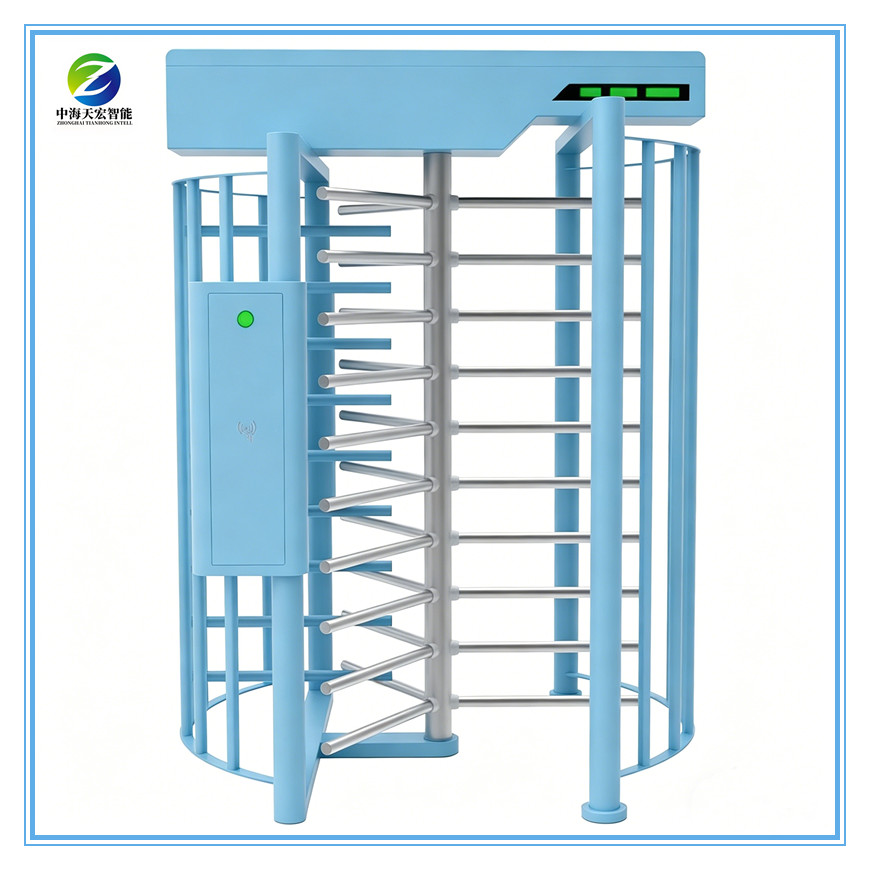

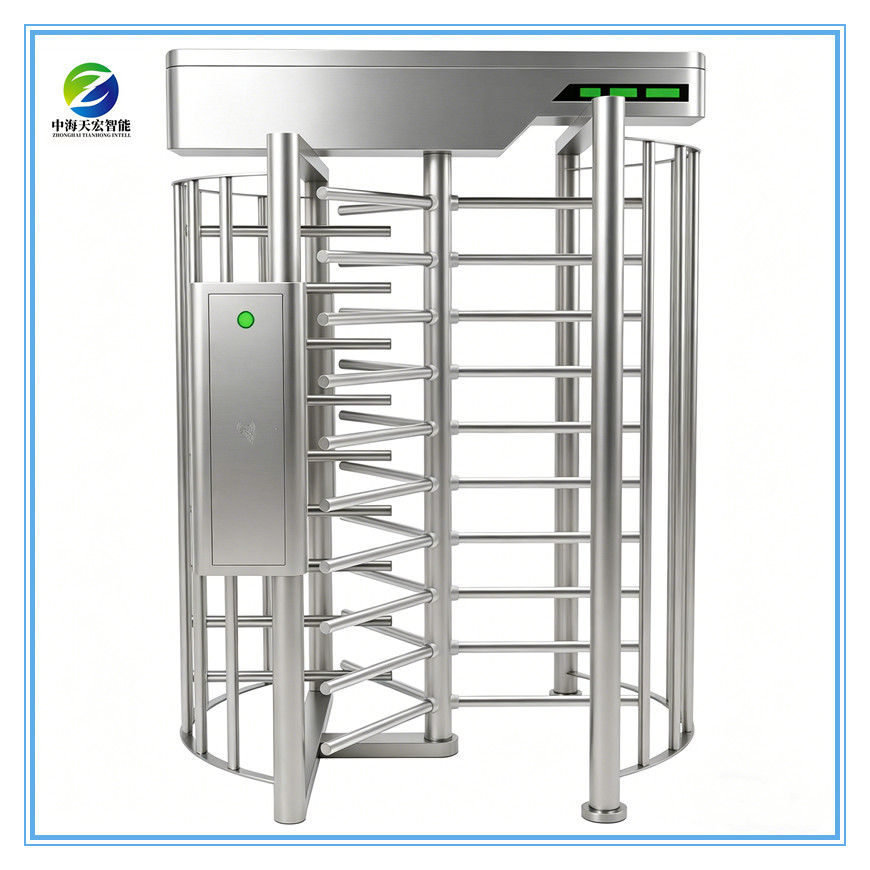

This IP65-rated FHT228-1 full-height security turnstile, made by Zhonghai Tianhong, represents a pinnacle of modern access control engineering, boasting a sleek, minimalist design with clean lines and a robust 304 stainless steel structure that exudes professionalism and durability.

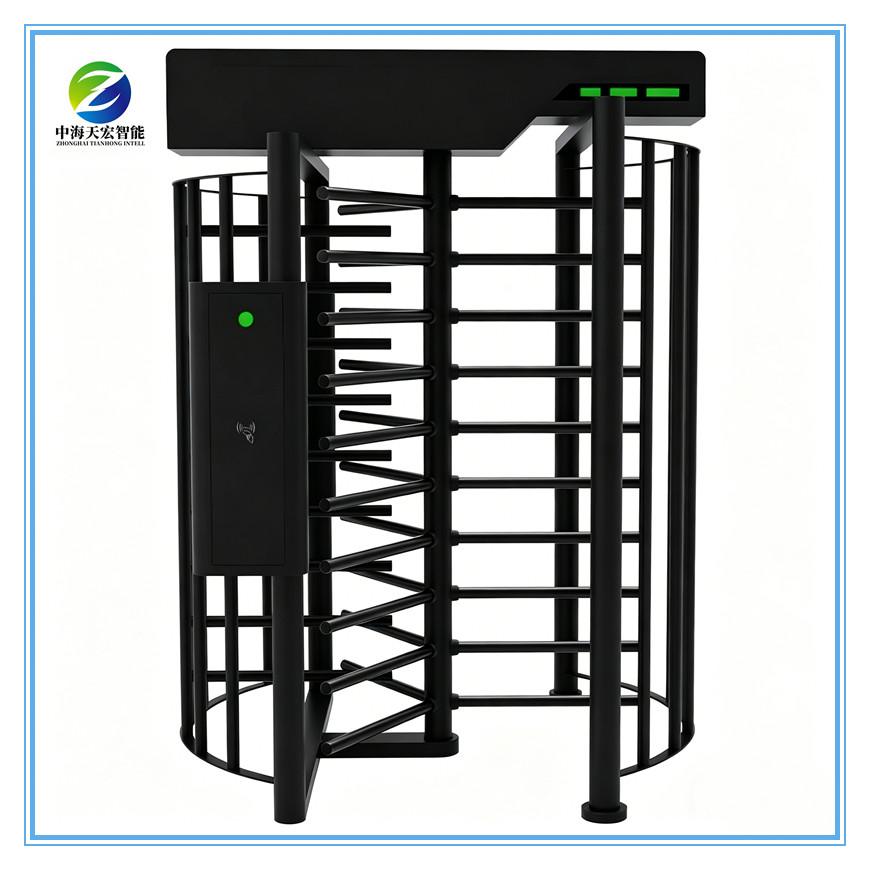

Its sophisticated aesthetic features a matte black finish and integrated LED indicator lights, ensuring seamless integration into any architectural environment while delivering superior visual appeal.
Engineered for high security performance, it operates with ultra-smooth, low-noise mechanics, ensuring a user-friendly experience even in high-traffic areas. Safety is paramount, equipped with advanced infrared sensors for precise anti-tailgating detection, automatic emergency unlocking, and anti-pinch technology to safeguard personnel.

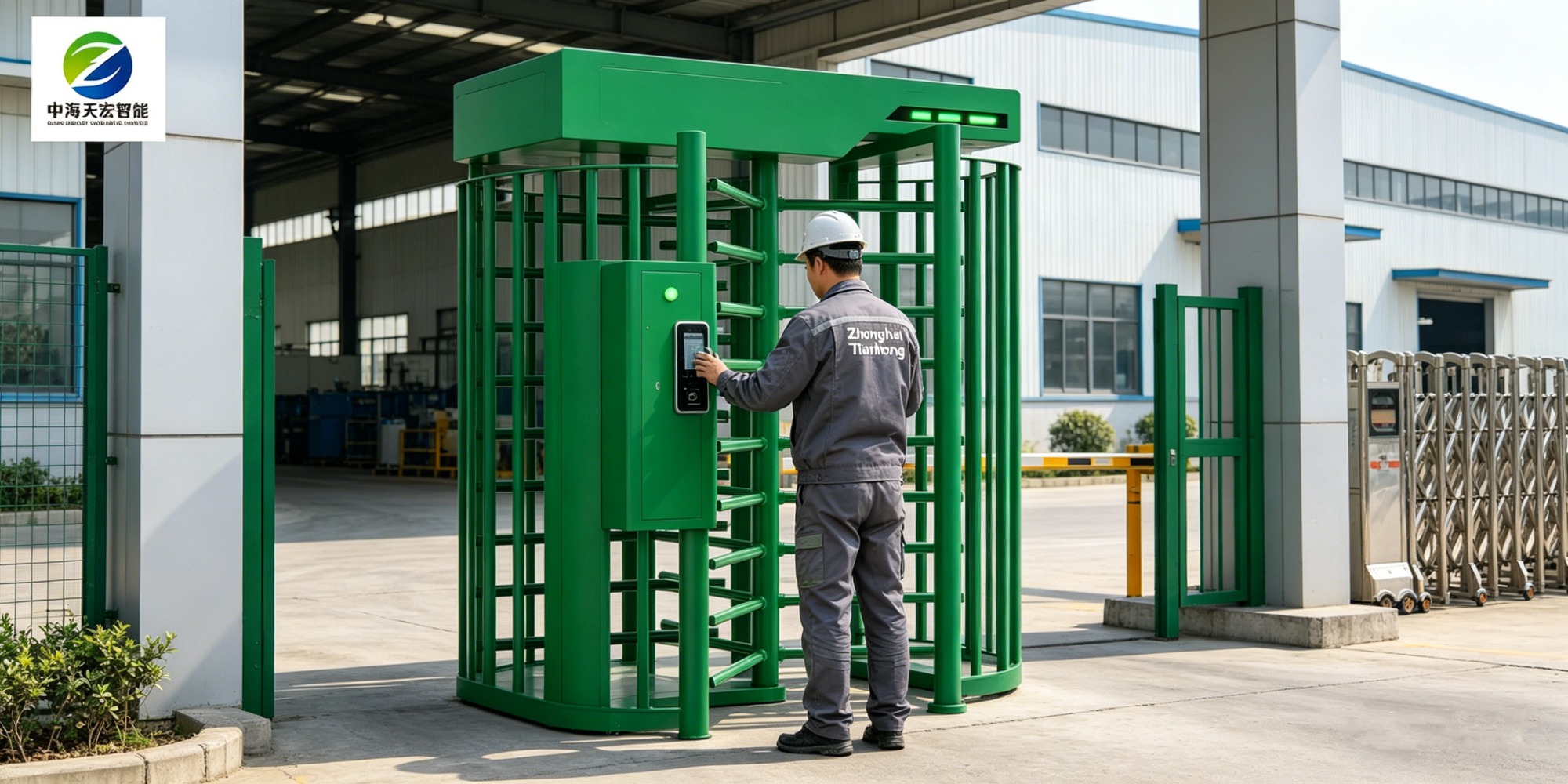

Built to withstand extreme weather with its IP65 waterproof and dustproof rating, this turnstile guarantees long-term reliability and is the ultimate choice for securing stadiums, construction sites, and high-security facilities.
FHT228-1 Full Height Security Turnstile Technical Parameters
Its sophisticated aesthetic features a matte black finish and integrated LED indicator lights, ensuring seamless integration into any architectural environment while delivering superior visual appeal.
Engineered for high security performance, it operates with ultra-smooth, low-noise mechanics, ensuring a user-friendly experience even in high-traffic areas. Safety is paramount, equipped with advanced infrared sensors for precise anti-tailgating detection, automatic emergency unlocking, and anti-pinch technology to safeguard personnel.
Built to withstand extreme weather with its IP65 waterproof and dustproof rating, this turnstile guarantees long-term reliability and is the ultimate choice for securing stadiums, construction sites, and high-security facilities.
FHT228-1 Full Height Security Turnstile Technical Parameters
| No. | Technical Parameter | Specification |
| 1 | Model Number | FHT228-1 |
| 2 | Overall Dimensions (L×W×H) | 1630×1500×2310mm |
| 3 | Protection Grade | IP65 (Waterproof & Dustproof) |
| 4 | Main Material | 304 Stainless Steel (Thickness: 1.5-2.0mm) |
| 5 | Access Control System | RFID Card Reader (13.56MHz), Biometric Compatible (Fingerprint/Face Recognition) |
| 6 | Working Temperature | -20℃ ~ 60℃ |
| 7 | Working Humidity | 10% ~ 90% (Non-condensing) |
| 8 | Power Supply | AC 220V ±10%, 50/60Hz |
| 9 | Power Consumption | ≤ 50W (Standby: ≤ 10W) |
| 10 | Turnstile Speed | 0.8-1.2 Seconds/Per Person |
| 11 | Anti-Tailgating Function | Infrared Sensor Detection, Anti-Tailgating Accuracy ≥ 99% |
| 12 | Weight | ≈ 180kg |
| 13 | Passage Direction | Single Direction / Bidirectional (Adjustable) |
