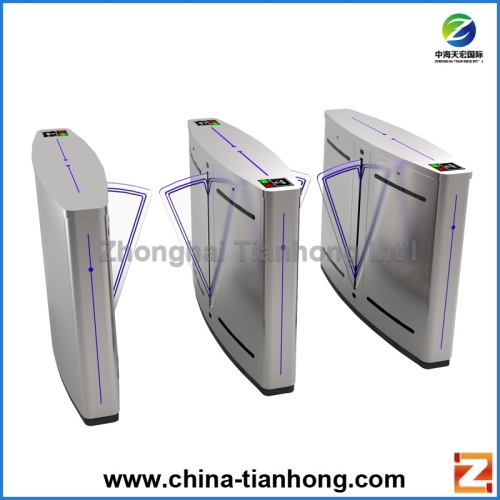

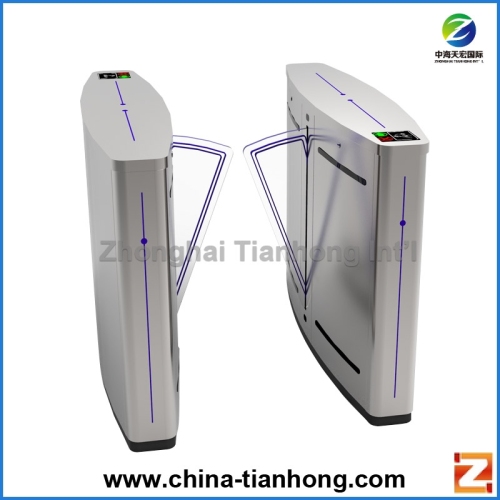

Flap Barrier systems provide effective means for pedestrian flow control at entrances of high class communities, intelligent buildings, hotels, subway stations and other high level venues.
Features and Benefits
• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function.
• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage.
• Display has been in use for statistics and numbers
• A combination of infrared sensors and anti-illegal entry into pedestrian access, the protection of pedestrians access smooth and the prevention of the channel following.
Communication
• Dry contact relay with 12 volt or 24 volt pulse
• Rs485, or Tcp-lp communication with computer
Products Characters:
** SUS stainless steel body, Steel cut by laser;
** The least welding portion polished properly;
** Original finish kept;
**Infrared EKS protection; Trespassing infrared alarm;
**Retrograde alarm after reading card ;
1:Size：1410x340x1005mm;
2.Unlock time: 0.2s ;
3.Pass rate: 35 person/min;
4.Pass width:≤550mm;
5.Input : 100V~240V;
6.Motor voltage: 24v;
7.Environment: -25~+70;
8.Power consumption:150w;
