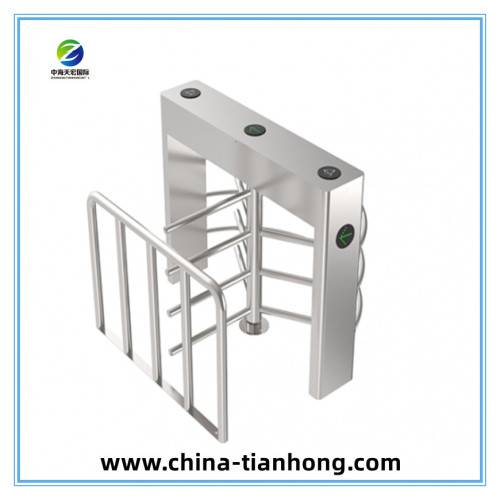

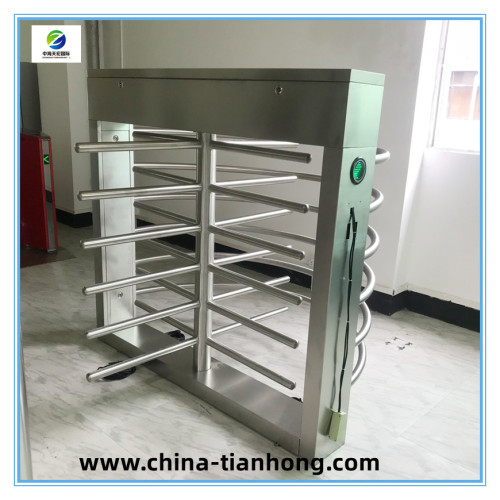

Access Control Half Height Turnstile
Item No.: TH-HHT118
The high security turnstiles door HHT118 offers a reliable and efficient method to ensure only authorized users are allowed access to each area of a building. The waist height gates product line offers for both indoor and outdoor access control.
Description
The high security turnstiles door HHT118 offers a reliable and efficient method to ensure only authorized users are allowed access to each area of a building. The waist height turnstile and gates product line offers for both indoor and outdoor access control applications. Our half height turnstile range comes with high quality anti-corrosive surface, guaranteed reliable operation under the extreme outdoor conditions.
Technical Parameters
Technical Parameters
| Model | TH-HHT118 |
| Size | 1600*1400*1100mm |
| Material | 1.2mm 304 SUS Hairline #400 |
| Pass Width | 600mm |
| Passage direction | Single directional/Bi-directional |
| Pass rate | 30-35 persons/minute |
| Operating time | 0.2 seconds |
| Power input | AC100-240V,50/60HZ |
| Working voltage | 24V |
| Working humidity | 30%~95% |
| Working temperature | -40℃~+70℃ |
| Working environment | Indoor/ Outdoor available |
| Communication interface | RS485, Dry contact |
| MCBF | 5,000,000 Cycles |
| Application | Factory, Museum park, Stadium, Sport Club etc |
