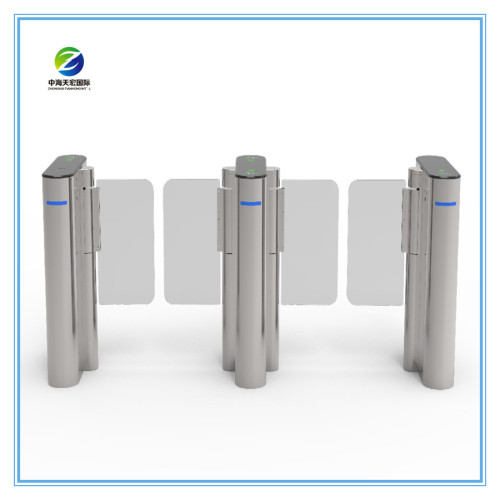

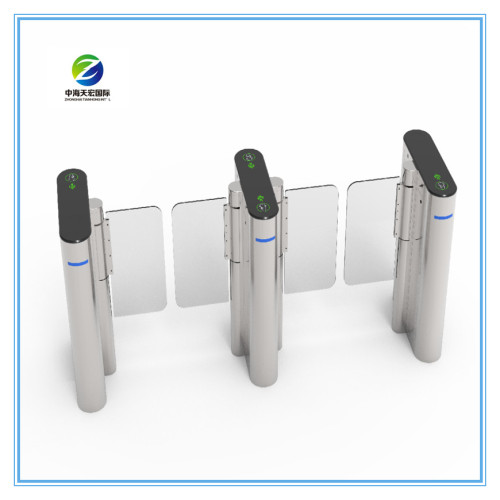

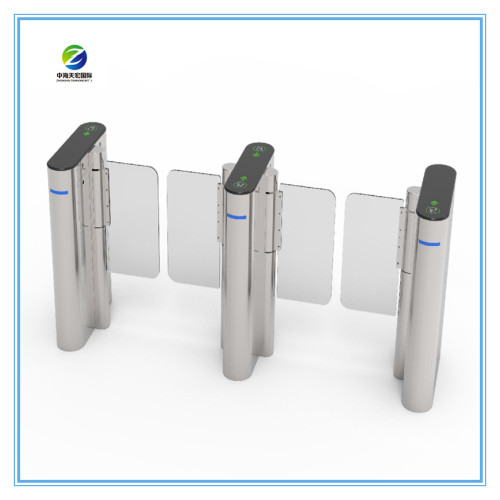

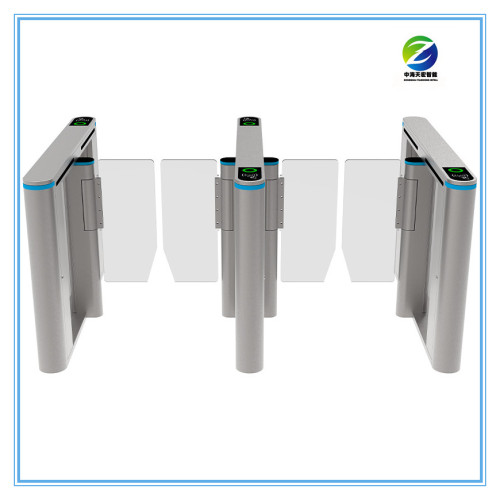

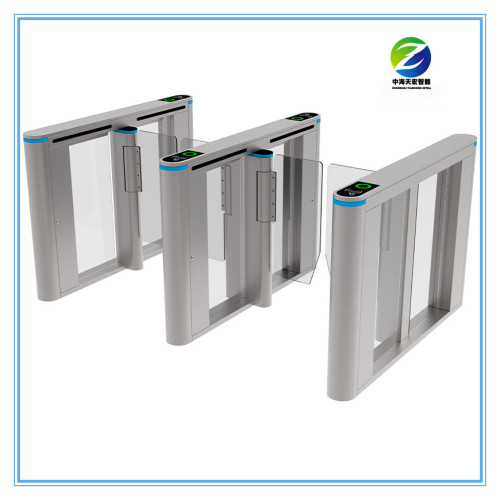

2023 Slim Fast Speed Gate Turnstile

Item No.: TH-SG378
TH-SG378 is an intelligent pedestrian passage fast speed gate turnstile developed & produced by Tianhong in 2023. It has a beautiful and generous shape, mature technology and stable performance.
INQUIRY
Description
TH-SG378 small speed gate has a very unique elegant arc shape design, patent appearance. Its body is made with high quality 304 stainless steel with both the shell rain proof design & full CNC laser cutting & slot bending, both beautiful and better achieve rain proof, rust prevention.

We used the fourth generation of automatic anti-collision self-reset speed pass gate special movement, brushless motor + precision anti-collision clutch + precision movement integrated design, 8 million stable operation.Its operation is fast and stable, and the noise is small, with the mechanical + infrared induction + circuit control and triple anti-clamp and anti-collision function, preventing the phenomenon of clamp and collision.

It has automatic power off opening function, automatic reset after power on, meets fire control and other special requirements, and has good safety.


Exclusive patent appearance design, TH-SG378 is installed with the black roof design, small cabinet design, front and rear with elegant blue lights and dynamic indication arrow combination, all make it look how noble and elegant is.

It is suitable for one-way or two-way control of traffic flow, such as the government, banks, airports, clubs, clubs, enterprises and public institutions, intelligent buildings, etc.

Main Technical Parameters
1.Body size: length 600 * width 160 * height 915mm

2. Housing Material : SUS304 Stailess steel material
3. Control Mode: full automatic
4. Alarm anti-clamp: illegal intrusion alarm, tracking alarm; mechanical + infrared induction + circuit control triple anti-clamp anti-collision
5.Working power supply: AC110V~AC220V
6.
Use environment: indoor; temperature: -30℃ to 70℃;
7.Communication mode: Customizable, RS232, RS485, TCP/IP
8.Traffic speed: 40 people / min
Mainly Applicable :
It is suitable for one-way or two-way control of traffic flow, such as the government, banks, airports, clubs, clubs, enterprises and public institutions, intelligent buildings, etc.
