Product Description

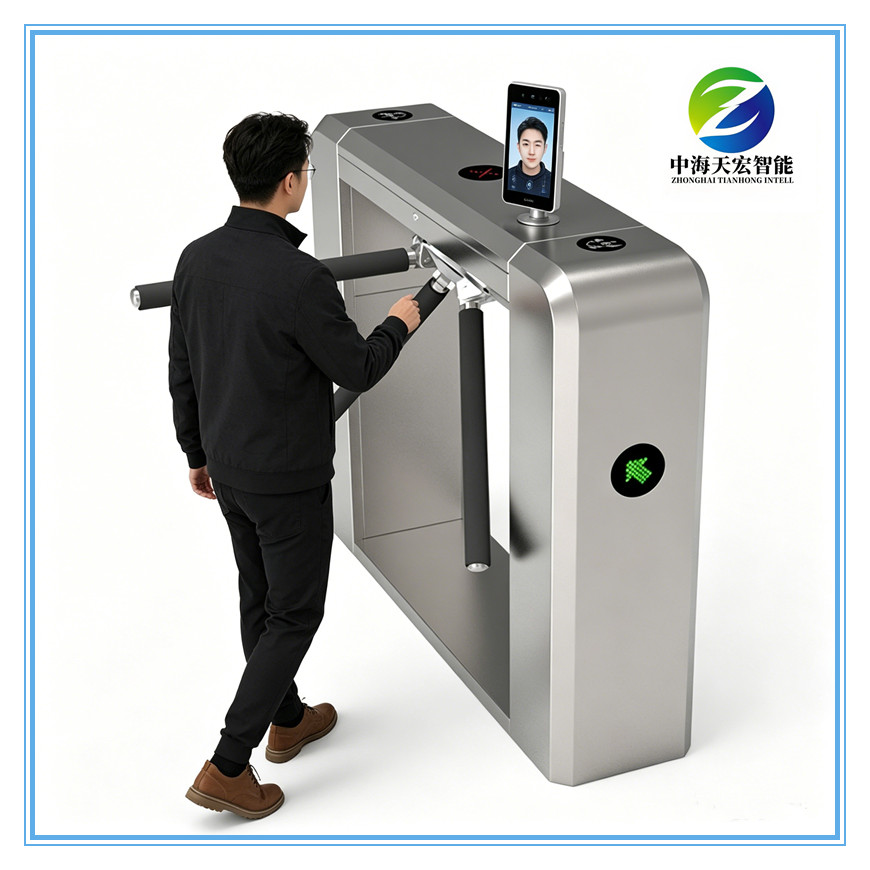

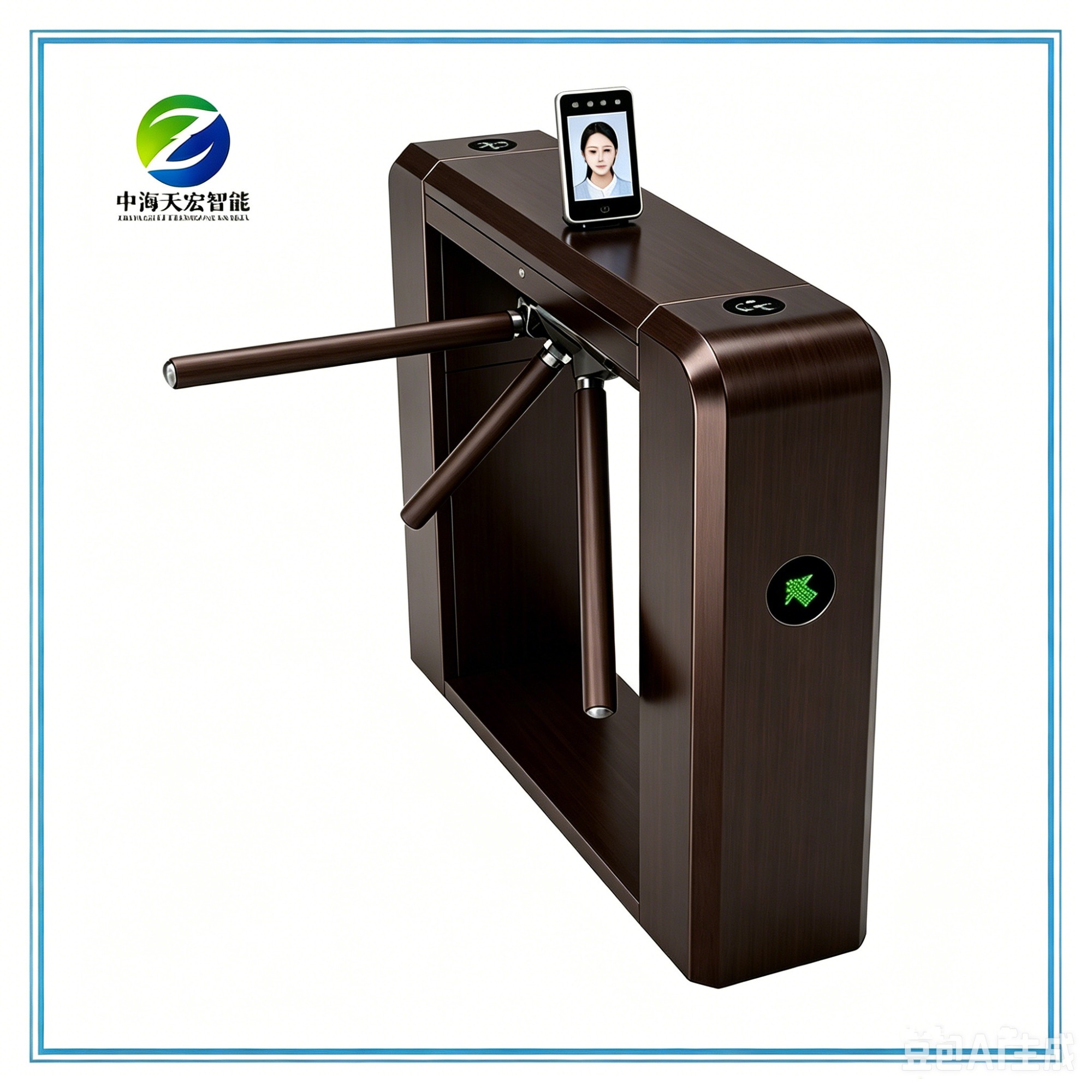

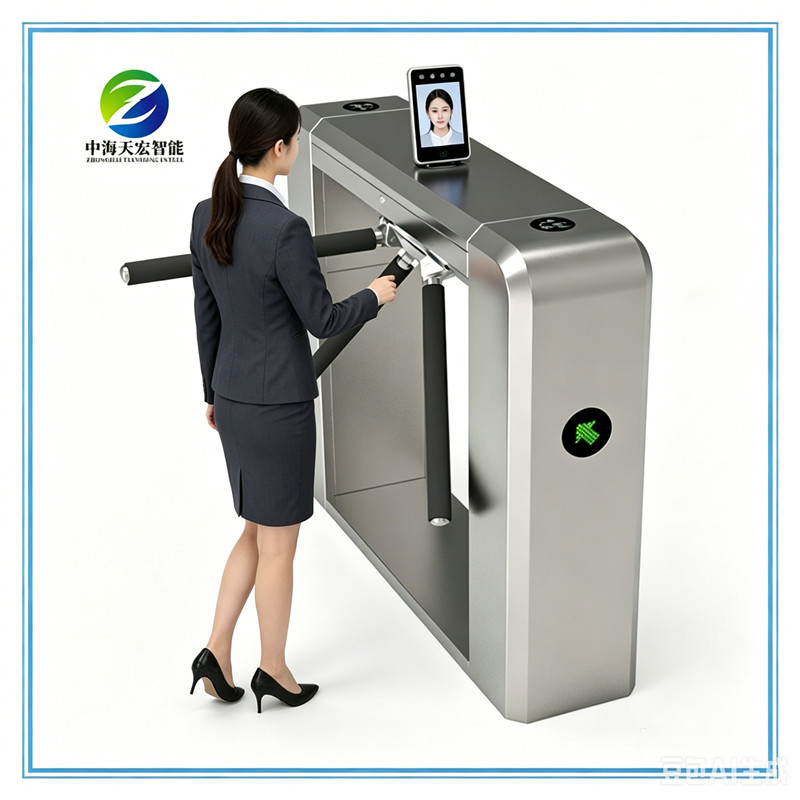

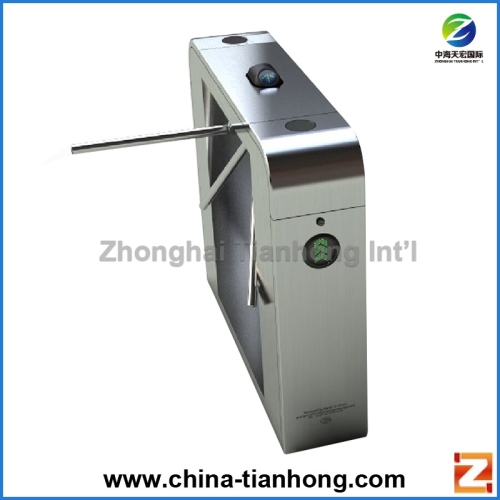

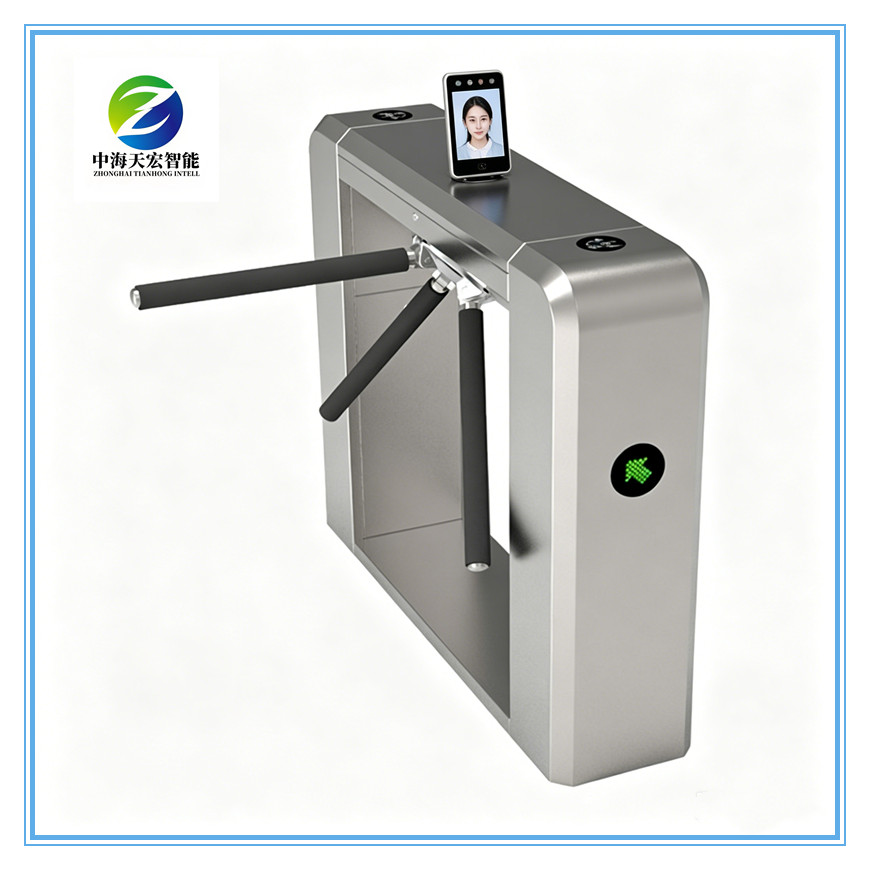

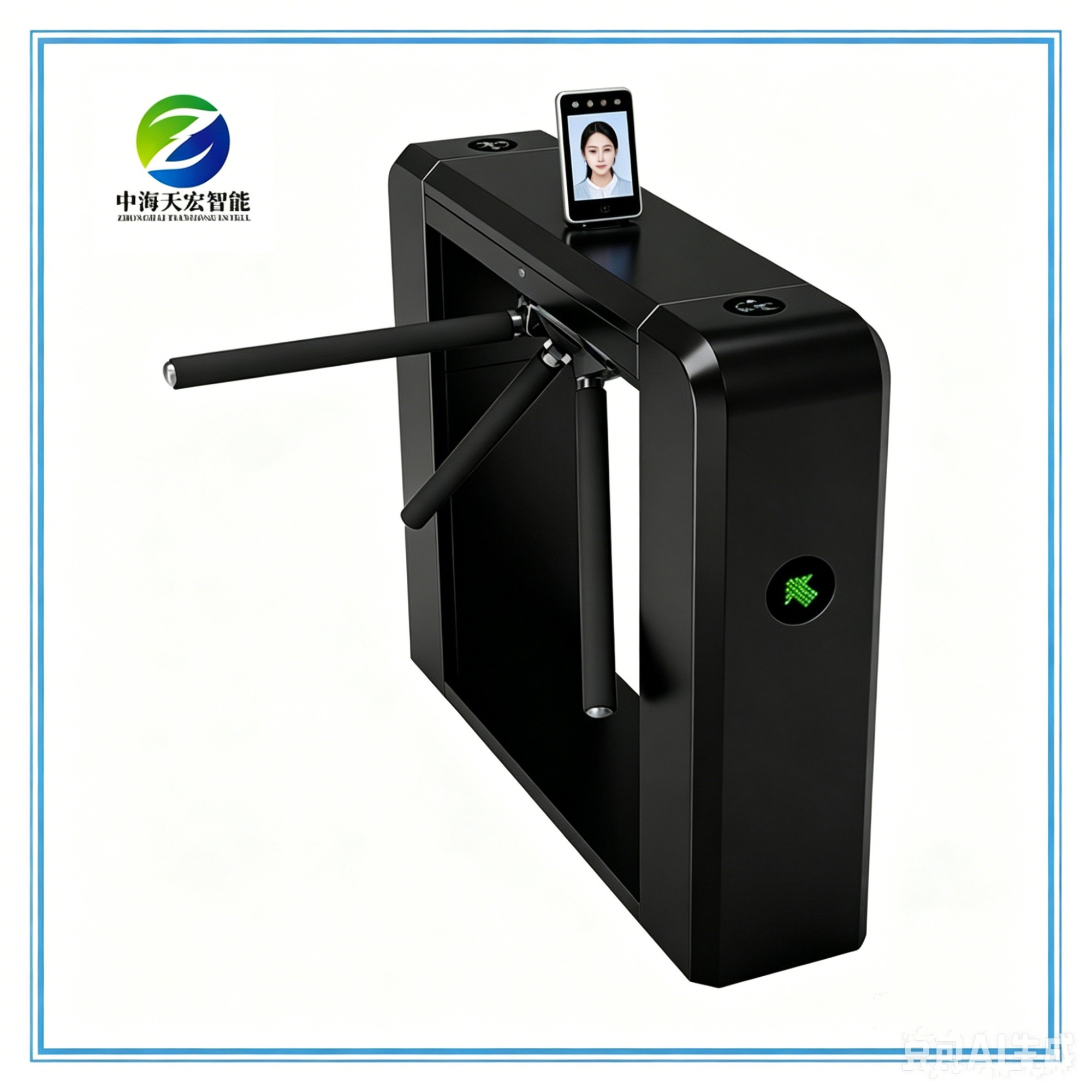

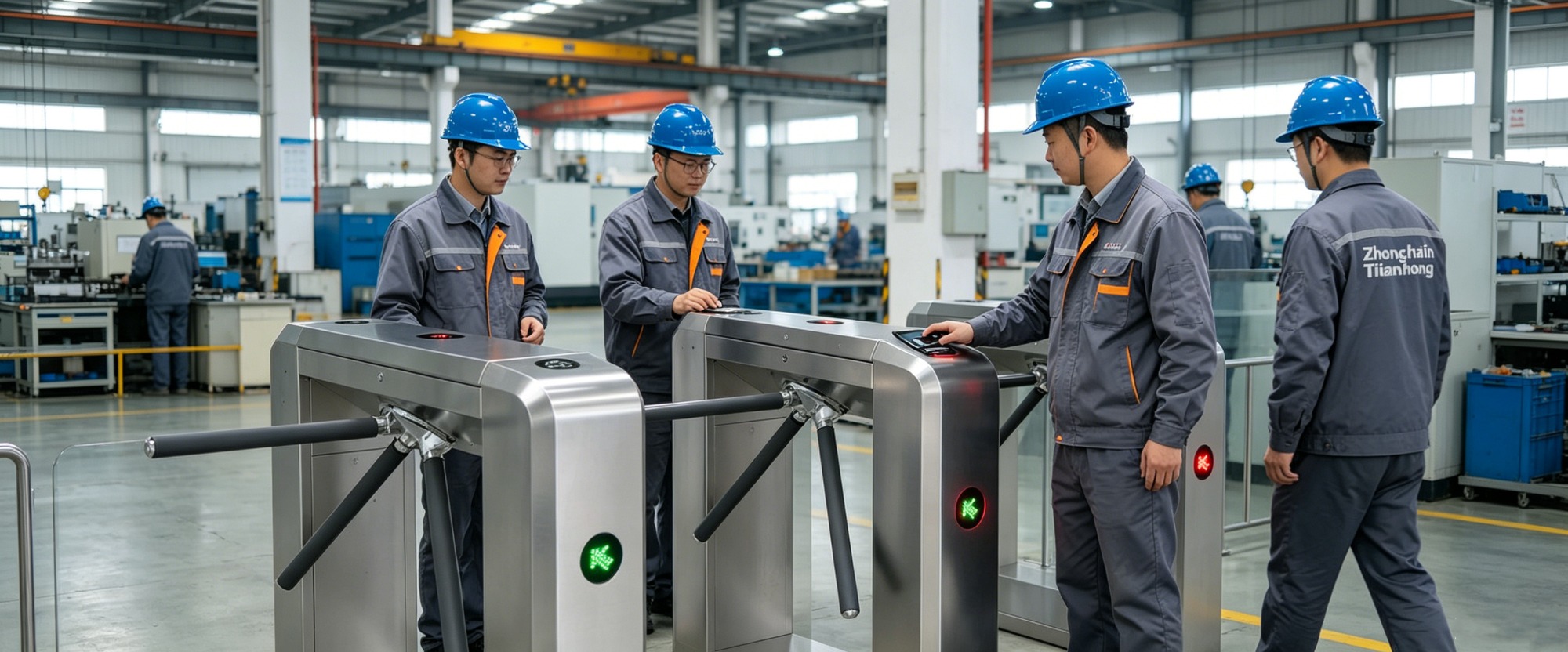

High Security Pedestrian Tripod Turnstile Access Control Gate TT301, engineered and manufactured by Zhonghai Tianhong, delivers robust, reliable pedestrian access control for high‑security areas. Built with premium SUS304 stainless steel housing and anti‑rust mechanism, it ensures long‑term durability even in harsh indoor/outdoor environments. Equipped with precision DC motor, photoelectric sensors, anti‑trailing and anti‑pinch functions, it enables smooth, safe, and controlled one‑way or bi‑directional passage. Supports multiple credential modes: RFID, IC, ID, magnetic card, and barcode. Features real‑time self‑diagnosis, alarm indication, and emergency drop‑arm for quick evacuation. Compact, modern design fits factories, office buildings, stadiums, and transport hubs. Easy to install and integrate with existing access systems, offering stable performance, low maintenance, and high cost‑effectiveness.
Technical Parameters
1. Protection: When the force exceeds the set value (such as 40 kg), arm can rotate in order to protect the mechanism from loss and then automatically reset.
2. Configuration: Mechanism, Housing, Control Board and Power supply
3. Operation Direction: Single/bi-direction
4. Structure: Frame structure/Stainless steel/Cold sheet metal with paint
5. Drive Mode: Direct current motor
6. Anti-reverse: Anti-reverse function in order to ensure one card for one person
7. Temperature:-10℃～60℃
8. Voltage:AC220V±10% 50Hz±4%
9. Humidity:5％~95％
10. Output:DC24V、DC12V、DC5V
11. Speed:≤25 people/minute
12. Power Consumption: Static state: single mechanism 20W; dynamic state: single mechanism 60W.
13. Noise:＜50DB
14. Working Environment: Indoor, Outdoor (with rain frame)
15. Lane Width: 550~570mm
16. Interface Parameter: One Rs232 interface, two card reader signals (Passive), one fire alarm interface.
17. Maintenance Port: 2
18. Service Life: Ten years (non-consumable)
19. IP protection:IP42
20. Dimension: L*W*H: 1200 x 280x1040（mm）
21. Net Weight: 100kg (Excluding the control part).
