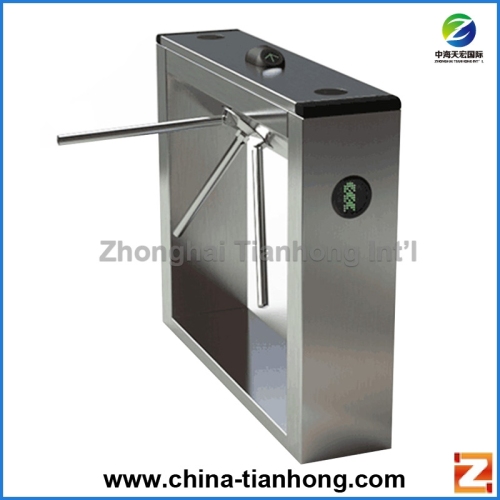

Waist Height Tripod Turnstile TH-TT201

Item No.: TH-TT201
Applied to pedestrian passageway and automatic ticket sale and check management such as for government, enterprises and institutions, Intelligent Building, residential areas, scenic area venues, universities, kindergartens, station, leisure and entertainm

Tripod turnstile is the most basic type of pedestrian turnstile gate, which is composed of the chassis, mechanism, and three blocking rods which stop or release by rotating 120° each time. Its components include chassis, mechanism, drive control board, motor, limit, direction indicator board, access control part, optional counter, etc. The metal rod (rod length standard 50cm) forms a spatial triangle as the blocking body (brake rod). It is made of 304 or 316 stainless steel, which is durable and not easy to deform. The blocking and releasing are achieved by rotation.

Tripod security gate can be combined with smart card, fingerprint, bar code, and other identification system equipment to form an intelligent access control system; It is combined with a computer, access control, attendance, charge management, ticket system, and other software to form an intelligent access control management system, which can realize the functions of access control, attendance, consumption, ticket sales, current restriction and so on.

Technical Parameter


Contains Mechanism, Housing, Driver  board, Power Supply
Housing Material Stainless steel or  Cold-rolled steel plate
Drive Mode Motor drive, 6 sets  Photoelectric sensor
Communication Interface One RS232 interface, two  card reader signals(passive),one fire alarm interface
Status Indication Allow passing through/  Forbidden
Power Consumption <60watt
Protection When external force more  than setting value, the tripod will be moved
Humidity 5%-90%
Noise ≤50dB
Lane Width 550-570mm
Net Weight 100KGS
Following Speed >15people/minute
Service Life Three millions continuous  opening and closing of barrier panel
Access Modes Rotating 10 degree manually,  then arms turned automatically
Input Input AC220V (10% more or  less), 50HZ (4% more or less)
Maintenance Port 2units
Dimension 1200L × 1040H × 280W(mm)
Working Environment 0°C-60°C
Working State Single/ bi-directional
