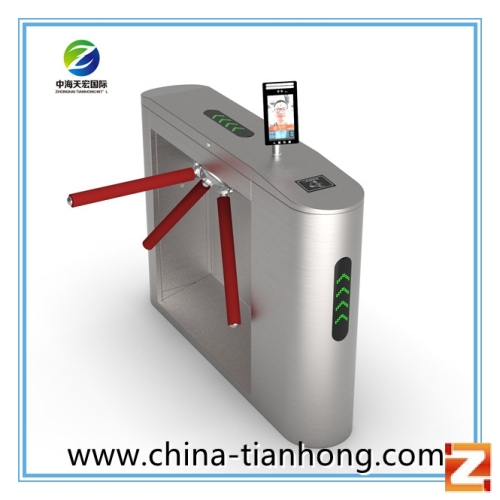

Face Control Access Tripod Turnstile

Item No.: TH-TT408
Tripod turnstile is used in different applications including gyms, arenas, perimeter and interior security, recreation and amusement parks, etc. Tripod turnstile can be mounted with LCD display, passage counter, card reader, token operation, alarm system

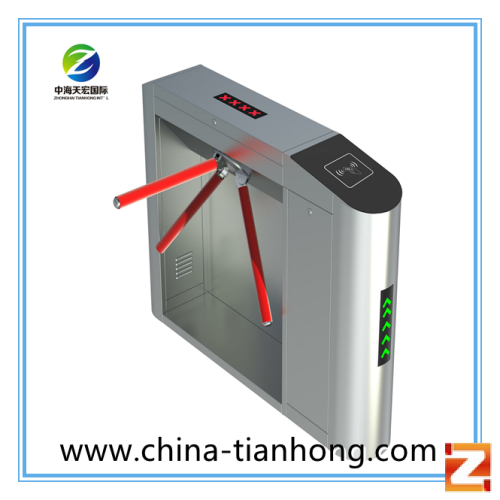

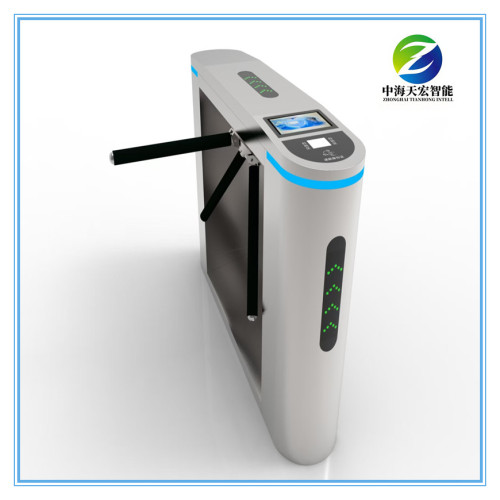

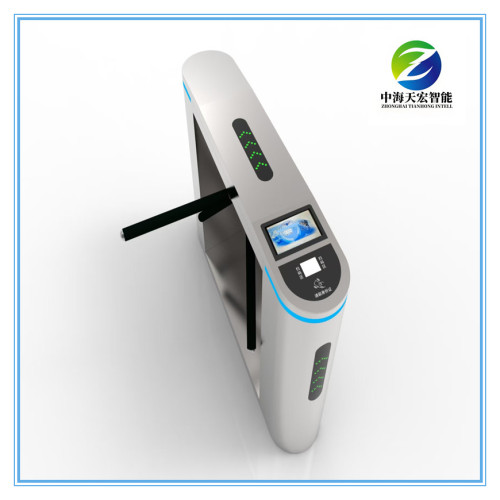

Tripod turnstile is the most basic type of pedestrian turnstile gate, which is composed of the chassis, mechanism, and three blocking rods which stop or release by rotating 120° each time. Its components include chassis, mechanism, drive control board, motor, limit, direction indicator board, access control part, optional counter, etc. The metal rod (rod length standard 50cm) forms a spatial triangle as the blocking body (brake rod). It is made of 304 or 316 stainless steel, which is durable and not easy to deform. The blocking and releasing are achieved by rotation.

TIANHONG Tripod turnstile can be combined with smart card, fingerprint, bar code, and other identification system equipment to form an intelligent access control system; It is combined with a computer, access control, attendance, charge management, ticket system, and other software to form an intelligent access control management system, which can realize the functions of access control, attendance, consumption, ticket sales, current restriction and so on.

Tianhong Tripod Turnstile  offers a high reliable and efficient method to ensure only authorized users are allowed access to each area of a buildings. We can provid all the customers both OEM & ODM services.

For more information, please feel free to contact us.

Technical Main Parameters


  1. Size: 1200 * 280 * 980 mm (can be customized)
  2. Lane width: 550 mm (can be customized)
  3. Passing speed: 35 person/min
  4. Power supply: 110 V/220 V 50/60 Hz
  5. Tripod access control Weight: 50 kg
  6. Gate Open Signal: Dry Contact/ Relay
  7. Side seal plate and bottom plate can be added
  8. Reliability of the mechanism :   5 million, no fault
