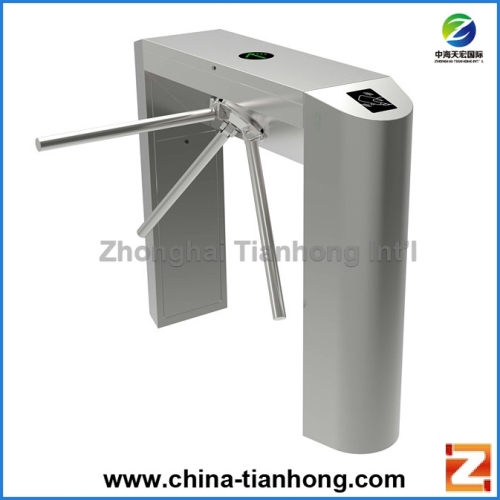

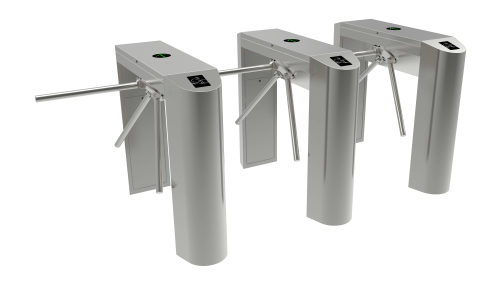

Tripod Turnstile TH-TT318

Product Description
Tripod Turnstile gate is a three-arm turnstile gate that is used in the location where the controlled entrance and exit of crowds are needed. The tripod security gate runs smoothly and effectively by basic operation, and also prevents illegal in and out. Tripod security turnstile is a type of easy, economical crowd-organizing, and reliable, entrance gate system. Tripod turnstile  is a cost-effective turnstile that is suitable for various locations.

Technical Parameters
1. Protection: When the force exceeds the set value (such as 40 kg), arm will rotate in order to protect the mechanism from loss and then automatically reset.
2. Configuration: Mechanism, Housing, Control board and Power supply
3. Operation Direction: Single/bi-direction
4. Structure: Frame structure/stainless steel/cold sheet metal with paint
5. Drive Mode: DC electric motor
6. Anti-reverse: Have anti-reverse function in order to ensure one card for one person
7. Temperature:-10℃～60℃
8. Power:AC220V±10% 50Hz±4%
9. Humidity:5％~95％
10. Output:DC24V、DC12V、DC5V
11. Speed:≤25 people/minute
12. Power Consumption: Static state: single mechanism 20W; dynamic state: single mechanism 60W.
13. Noise:＜50DB
14. Working Environment: Indoor, Outdoor (with rain frame)

15. Lane Width: 550~570mm
16. Interface Parameter: One Rs 232 interface, two card reader signals (Passive), one fire alarm interface.
17. Maintenance Port: 2
18. Service Life: Ten years (non-consumable)
19. IP Protection:IP42
20. Dimension: L*W*H: 1200 x 280 x 980（mm）
21. Net Weight: 45kg (Excluding the control part)
