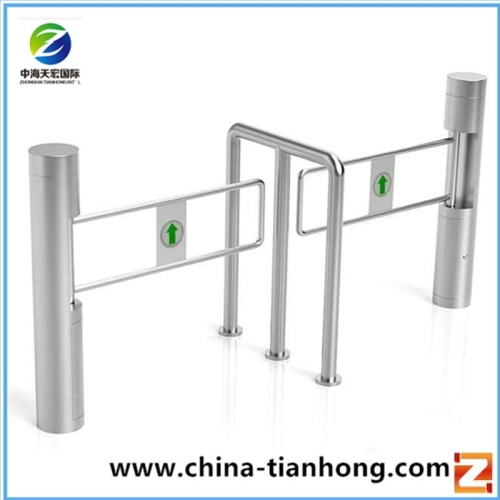

Supermarket Swing Barrier Gate

Item No.: TH-SGB201+
Flap Barrier Gate System is a fast acting entry control barrie
system; bi-directional, with flaps that open into its pedestal.
Its solid defence structure is built for high frequency usage and heavy traffic flow.

Products Technical deatials:

1. Interface: One Rs 232 interface, two card reader signals (passive), one fire alarm interface.
2. Lane Width:≤900mm
3. Power Input:AC220±10%V,50HZ
4. Following Speed:≥20 people / min.
5. Power Consumption: Static state: single core 20W; dynamic state: single core 60W.
6. Temperature:-10 ℃ - 60 ℃
7. Humidity:5%~95%
8. Working Environment: Indoor, or outdoor matching with rain frame
9. Service Life: More than 5 million continuously
10. Drive Mode: DC electric motor
11. Anti-reverse: Anti-reverse function to ensure one card for one person
12. Overall Dimension: Cylinder height: 1000mm Diameter: 168mm
13. Output:AC24V、DC12V、DC5V
14. IP protection: Ip42
