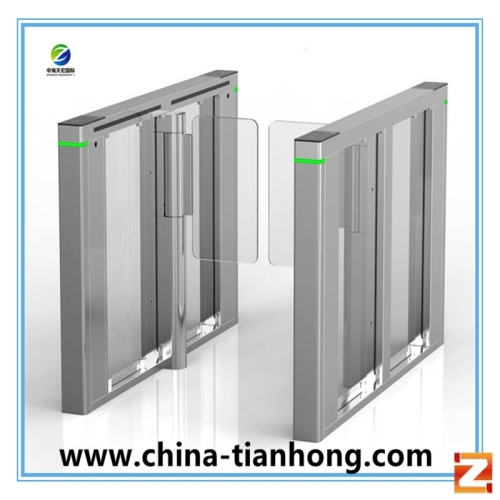

Speed Gate TH-SG318
Item No.: TH-SG318

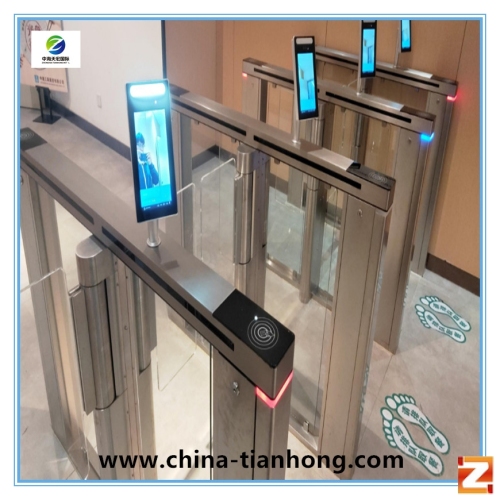

Be applied to pedestrian passageway and automatic fare collection management such as government, enterprises and office building.
Description
Parameters
1. Configuration: Mechanism, Housing, Control board, Power supply
2. Power Consumption:Static state: single core 60W; dynamic state: single core 160W.
3. Power Input:AC220V±10%，50HZ
4. Output:DC5V、DC12V、AC24V
5. Drive Mode:DC electric motor
6. Interface:one Rs 232/485 interface, two card reader signals (passive), one fire alarm interface.
7. Overall Dimension:1500L x 185W x 1020H (mm)
8. Following Speed:35 people/minute in normal mode, 50 people/minute in fast mode
9. Service Life: Five millions continuous rotation
10.Operation Direction:Single/bi-directional
11.Working Environment:Indoor
12.Lane Width:500mm-550mm
13.Opening Angle:90±5°
14.Noise:≤50dB
15.Opening and Closing time:1 second
16.Net Weight: Single core 70 KGS/set; double cores 100 KGS/set
