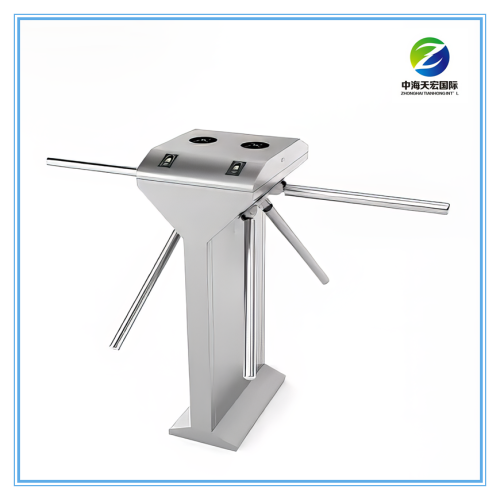

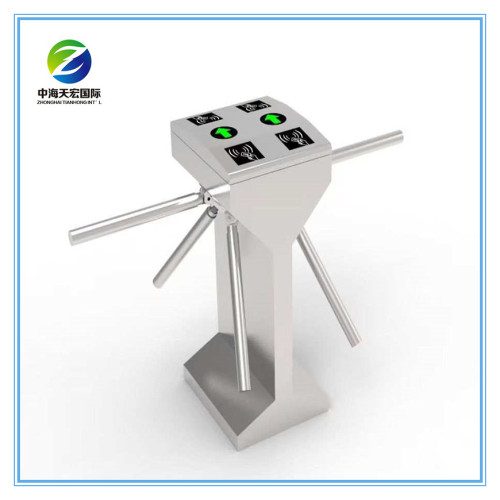

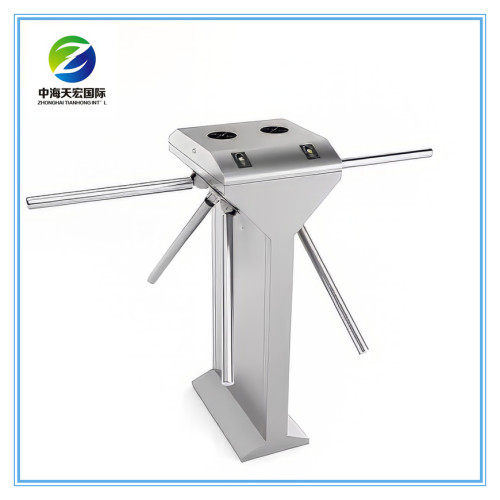

Double Tripod Turnstile with People Counting System
The Zhonghai Tianhong DTT01 Double Tripod Turnstile combines robust access control with innovative People Counting System for comprehensive crowd management. Designed for high-traffic environments, it ensures reliable security and smooth flow of individuals.
The turnstile's sturdy construction guarantees durability and longevity. Equipped with a sophisticated People Counting System, the DTT01 accurately tracks the number of people passing through, providing valuable data for optimizing traffic flow and resource allocation. This feature enhances operational efficiency and facilitates informed decision-making.
The DTT01 is highly adaptable, suitable for various applications such as stadiums, transportation hubs, office buildings, and more. Its sleek design blends seamlessly with different architectural styles while maintaining a professional appearance.
Installation and maintenance are hassle-free, thanks to Zhonghai Tianhong's commitment to user-friendly designs and quality craftsmanship. With its intuitive interface and robust performance, the DTT01 Double Tripod Turnstile with People Counting System offers an effective solution for enhancing security and optimizing crowd management in diverse environments. Trust Zhonghai Tianhong for cutting-edge access control solutions that prioritize both security and efficiency.
Technical Parameters:
1. Power
AC220V±10V,50/60HZ;
2.Machine core: semiautomatic
3.Operating Temperature: -45℃-60℃
4.Relative Humidity:≤95%, No Condensation
5.Passage Width: ≤600mm
6.Passing Speed: 45persons/min
7.Motor: No motor, spring driving
8.Input Connection: +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma
9. Communication Connection: RS485 Communication
10.Material: Stainless steel 304,thickness is no less than 1.3mm
11. Communication Distance: 1200M
12.Running life:5--8 Million(Continuous Opening and Closing Operation)
13.Protect level:IP54

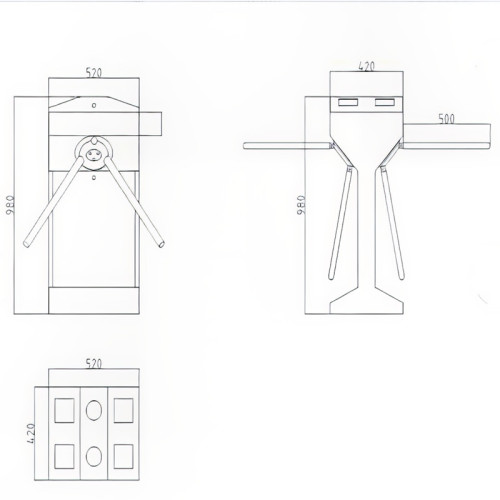

14.Size:1220*280*985mm(Bridge house ) ;
400*330*980mm(Vertical house), can be customized
15.Colour: SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional)
16. Operation Place:
Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise's Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control
Functions& Features
1.Running stable without noise and mechanical impact
2. The passing person number of the persons can be set
3.Several ways of working molds for you to choose
4.Bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board
5.Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection.
6. Direction-guide lights in the turnstile to tell you whether the direction to go or not

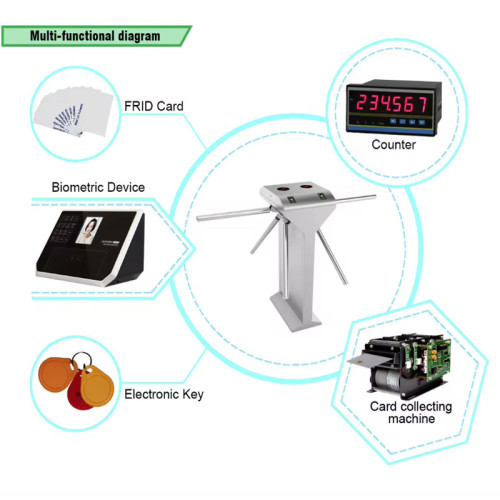

7.The standard electrical interface connected with various kinds of reader and writer equipment, RS485 Communication interface, Relay interface, Level interface
8.All the functions realized in one integration machine and controlled and managed by the computer in the far distance
9.The number of the persons passed by can be counted automatically which can also be displayed in LED
10. Beam can be lifted and fall when power is cut-off, arms auto rise up when power on and auto stop on obstacle
11. The function with or without card-reading memory can be set according to your demand.
12. Self-check and alarm for coinventing to operate
