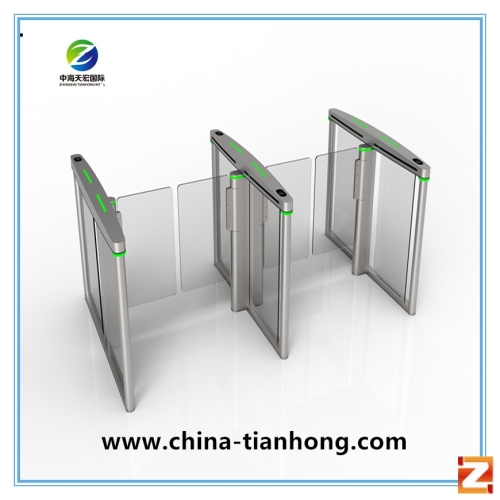

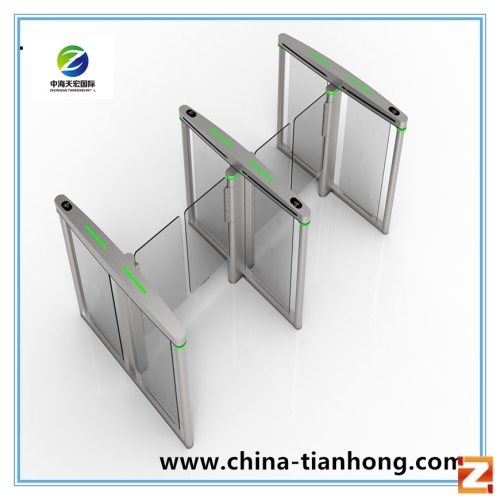

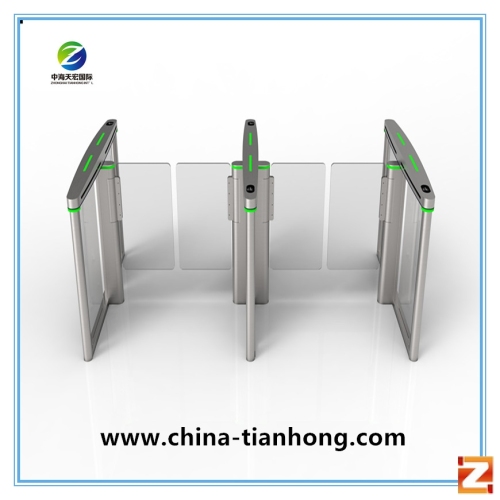

Brushless Servo Motor Slim Swing Gate

Item No.: TH-SG418
Nice looking slim swing gate is designed for  its insatllation  at the entrance of deluxe office buidings for the banks, governments, hospitals, factories, schools, universities etc.
INQUIRY
Description
Product Description
Parameters
1. Configuration: Mechanism, Housing, Control board, Power supply
2. Power Consumption: Static state: single core 60W; dynamic state: single core 160W.
3. Power Input:AC220V±10%,50HZ
4. Output:DC5V,DC12V,AC24V
5. Drive Mode: DC electric motor
6. Interface: one Rs 232 interface, two card reader signals (passive), one fire alarm interface.
7. Overall Dimension:1500L x 185W x 1020H (mm)
8. Following Speed:35 people/minute in normal mode, 50 people/minute in fast mode
9. Service Life: Five millions continuous rotation
10.Operation Direction: Single/bi-directional
11.Working Environment: Indoor
12.Lane Width:500mm-550mm
13.Opening Angle:90±5°
14.Noise:≤50dB
15.Opening and Closing time: 1 second
16.Net Weight: Single core 70 KGS/set; double cores 100 KGS/set
