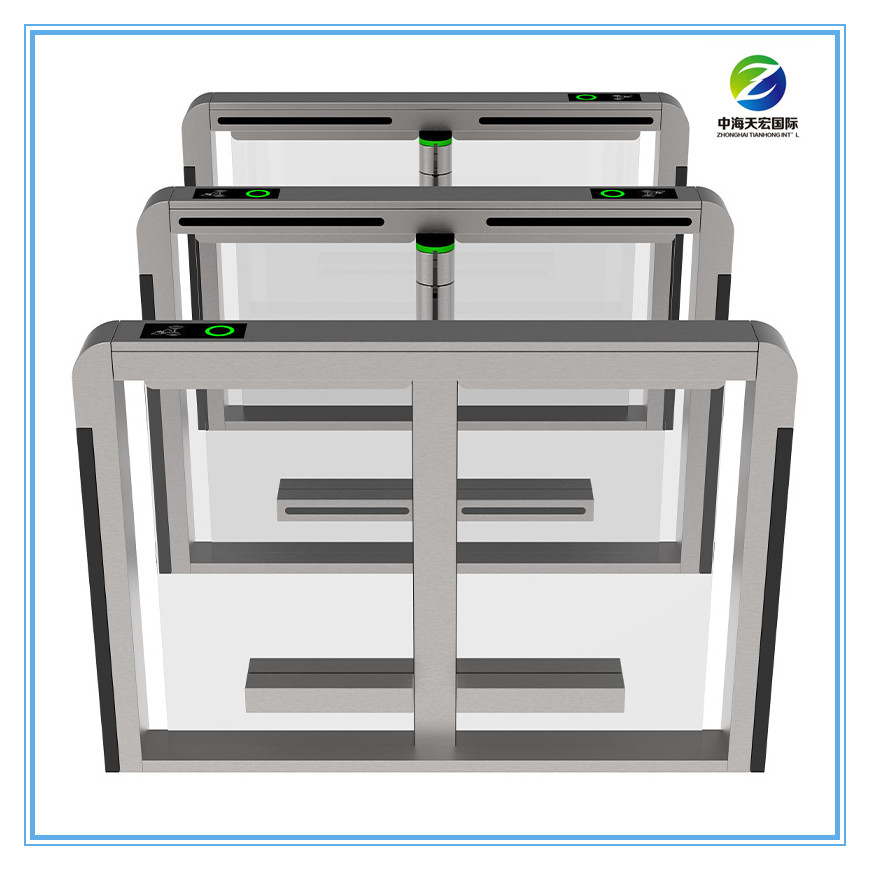

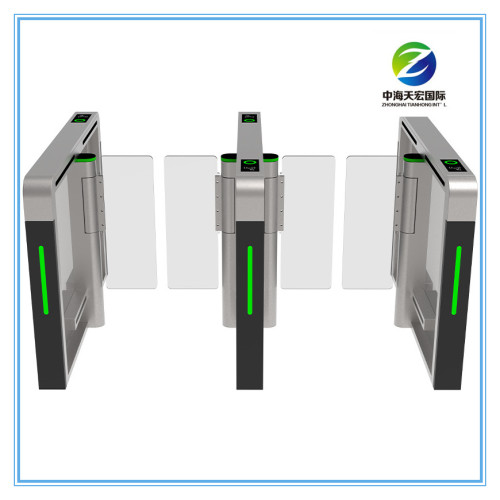

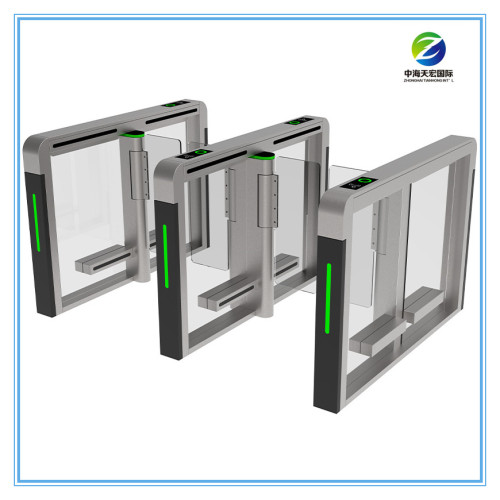

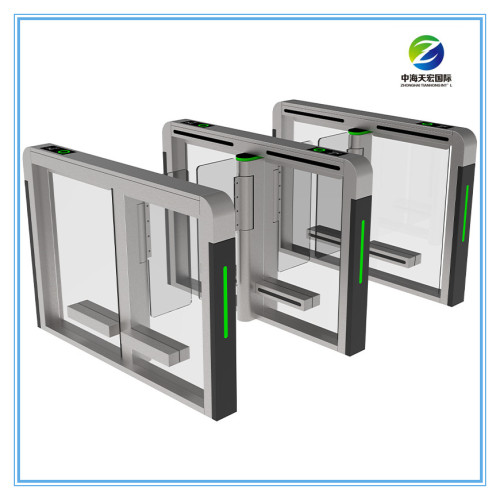

Access Control Speed Gate
Item No.: TH-SG318+
Access Control Speed Gate Turnstile is a high-tech entry management system. Utilizing biometrics or RFID, it features swift retractable barriers to allow only authorized individuals, enhancing security and regulating pedestrian flow in controlled environm
Description
Access Control Speed Gate Turnstile is a sophisticated entry control system designed to manage and monitor the flow of individuals in secure areas such as office buildings, airports, and public transport stations. These turnstiles incorporate advanced technology to enhance security and streamline access procedures.
Featuring a sleek and compact design, Speed Gate Turnstiles are equipped with high-speed retractable barriers that open and close swiftly, allowing only one person to pass at a time. The access control system integrates biometric authentication, RFID cards, or other identification methods to ensure authorized entry while preventing unauthorized access.
These turnstiles play a crucial role in regulating pedestrian traffic, preventing tailgating, and enhancing overall security. The real-time monitoring capabilities of the Access Control Speed Gate Turnstile provide administrators with detailed insights into entry patterns and potential security breaches.
With their durable construction and customizable options, these turnstiles offer a blend of functionality, aesthetics, and security, making them an integral part of modern access control systems in various high-traffic environments.
Main Parameters
1. Size: 1400*150*1000 mm (can be customized)
2. Lane Width: 600 mm (Standard) 900 mm( Handicapped)
3. Arm material: Acrylic
4. Passing speed: 40 person/min
5. Power supply: 110 V/220 V 50/60 Hz
6. Brushless motor: 40W
7. Gate Open Signal: Dry Contact/ Relay
8. Driving Motor: 24 V
9. Weight: 70 kg/pcs
The SG318 access control speed gate turnstile's high-speed mechanism and elegant appearance design make it to be the ideal choice for an office building, university, amusement park, etc. A swing turnstile gate is a high-efficiency turnstile gate that is easily capable of handling high volume and abusive conditions.
The access control speed gate turnstile of SG318 enjoys an excellent performance with the following distinguish features:
Featuring a sleek and compact design, Speed Gate Turnstiles are equipped with high-speed retractable barriers that open and close swiftly, allowing only one person to pass at a time. The access control system integrates biometric authentication, RFID cards, or other identification methods to ensure authorized entry while preventing unauthorized access.
These turnstiles play a crucial role in regulating pedestrian traffic, preventing tailgating, and enhancing overall security. The real-time monitoring capabilities of the Access Control Speed Gate Turnstile provide administrators with detailed insights into entry patterns and potential security breaches.
With their durable construction and customizable options, these turnstiles offer a blend of functionality, aesthetics, and security, making them an integral part of modern access control systems in various high-traffic environments.
Main Parameters
1. Size: 1400*150*1000 mm (can be customized)
2. Lane Width: 600 mm (Standard) 900 mm( Handicapped)
3. Arm material: Acrylic
4. Passing speed: 40 person/min
5. Power supply: 110 V/220 V 50/60 Hz
6. Brushless motor: 40W
7. Gate Open Signal: Dry Contact/ Relay
8. Driving Motor: 24 V
9. Weight: 70 kg/pcs
The SG318 access control speed gate turnstile's high-speed mechanism and elegant appearance design make it to be the ideal choice for an office building, university, amusement park, etc. A swing turnstile gate is a high-efficiency turnstile gate that is easily capable of handling high volume and abusive conditions.
The access control speed gate turnstile of SG318 enjoys an excellent performance with the following distinguish features:
- The whole system runs smoothly, with low noise, and high speed.
- Alarm function, if there is an illegal intrusion or reverse intrusion, the gate will alarm and the door will lock.
- There is a total of 6 pairs of infrared sensors The middle sensor is to prevent pinch pedestrians.
- Anti-tailing function, one person can pass at one time. If someone tails after the front people, the gate will alarm
- LED indicator. Red cross and green arrow. There are also LED indicators on the front post. The LED light can be added to the arms.
- Bi-directional access reduces the need for more gates. It is accommodated for wheel chair, shopping stroller increases the passing efficiency.
- Automatic reset function. If the people did not pass within the preset time (default time is 5 seconds), the system will cancel the authority of the user and close automatically
- Anti-bump, Anti clamp, the gates come with a brushless motor. During operation, if someone hits the arm, the gate will reset automatically. This function effectively prevents pedestrians, especially children from bumping, clipping, striking, etc.
- The anti-hit mechanism, automatically resets when encountering force impact
- Lobby Turnstiles Casing Material: 304 stainless steel and powder coated
- Reliability of the mechanism: 5 million, no-fault
- Hall Switch Locating arm, more precise
- Working Direction: Bidirectional/Single directional
- Emergency situation: open automatically when the electricity is cut off with a capacitor
- Humidity: ≤90％
- LED lights on arms are available
- Arm acrylic thickness: 10 mm
- Working temperature: -20℃～60℃
- Communication distance: ≤1200 m
- Communication interface: RS485
- Feature: IC/ID reader, Barcode Reader, Face recognition, Fingerprint, other access control equipment, UPS, etc
- The time needed for opening: 0.2 s
- Working environment: Indoors
- Application range: Community, Factory, Construction site, School, Place of the resorts etc.
- We accept both OEM & ODM orders. Please feel free to contact us at any needs.
